Andrew Barclay Works N 1015        Horden Collieries Ltd 0-6-0ST

AB 1015 Shotton Colliery September 1971.jpg

The locomotive was built by Andrew Barclay with 15in x 22in outside cylinders, 3ft 5in diameter wheels and weighed 32 tons 10cwt. The tractive effort was 16,420lbf.

This locomotive was built in 1904 and entered service as No1 Horden at The Horden Collieries Ltd in County Durham. This company owned Blackhall, Horden and Shotton Collieries and the locomotives they owned moved around between the collieries. No1 was once moved by road in steam, over four track panels at a time, between Shotton and Horden Collieries, to avoid high North Eastern Railway movement charges.

On the nationalisation of the coal industry in January 1947 it was based at Shotton where it became a National Coal Board (NCB) locomotive.

It was then moved to Horden Colliery on the coast in 1955, returning around 1957 and was fitted with a new welded steel firebox by its builders in 1962. In June 1969 it was sent north to Ashington Central Workshops in Northumberland, for overhaul, the only NCB Durham Area steam loco ever sent there.

By May 1970 it had returned and continued its duties in company with STAGSHAW, which is also preserved at Tanfield. Whilst at Shotton Colliery it collided head-on with a BR Q6 0-8-0, which came off worst in the encounter and it still carries its bent front buffer beam to this day. In September 1972 Shotton Colliery closed and No.1 was sold to the Stephenson Hawthorn Locomotive Trust and moved to NCB Backworth Colliery in Northumberland, for storage in November 1972. In May 1976 it moved to NCB Burradon Colliery for a further period of storage and then back to Backworth Colliery, before moving to Marley Hill in June 1980.

In 2011-2012, Horden was assessed for suitability for restoration, including a thorough boiler and mechanical examination. Following the assessment, the restoration began in the first half of 2012. The boiler was lifted out of the frames in 2012. In March 2013, the wheels were removed from the frames.

In 2015 the locomotive was given new tyres which had been supplied direct from Andrew Barclay back in the 1970s when it was first preserved.

The locomotive is based on the Tanfield Railway where it is still being restored at Marley Hill.

A progress report on the overhaul in August 2019 reported that the main steam pipes had been fitted to the boiler and the next job would be to fit the tubes.

A further report in October 2019 revealed that hydraulic testing had been undertaken in the previous month and an official test with the boiler inspector was planned for October.

Whilst out of the locomotives frames the boiler had a fire lit in it in December 2019. It is planned that the locomotive enters service during 2020, some 48 years since it last ran.

The boiler was returned to the frames in December 2019. At the same time the cab and tank were at the final painting stage.

In May 2020 it was reported that the locomotive was being painted in the livery it had when it was new including painting the name Horden with gold leaf.

In June 2020 it was disclosed that no-ferrous components worth over £20,000 had been stolen at the Tanfield Railway which is delaying the completion of the overhaul of the locomotive. At the time of the theft the locomotive was only weeks away from steaming again.

In August 2020 it was anticipated that the locomotive would be operational later in the year.

Horden returned to steam at the Tanfield Railway in October 2020 following completion of an eight year restoration project. It entered traffic early in 2021.

AB 1015 Shotton Colliery September 1971.jpg
1015 at Shotton Colliery – September 1971
AB 1015 Dec 2009.jpg
1015 on the Tanfield Railway – December 2009

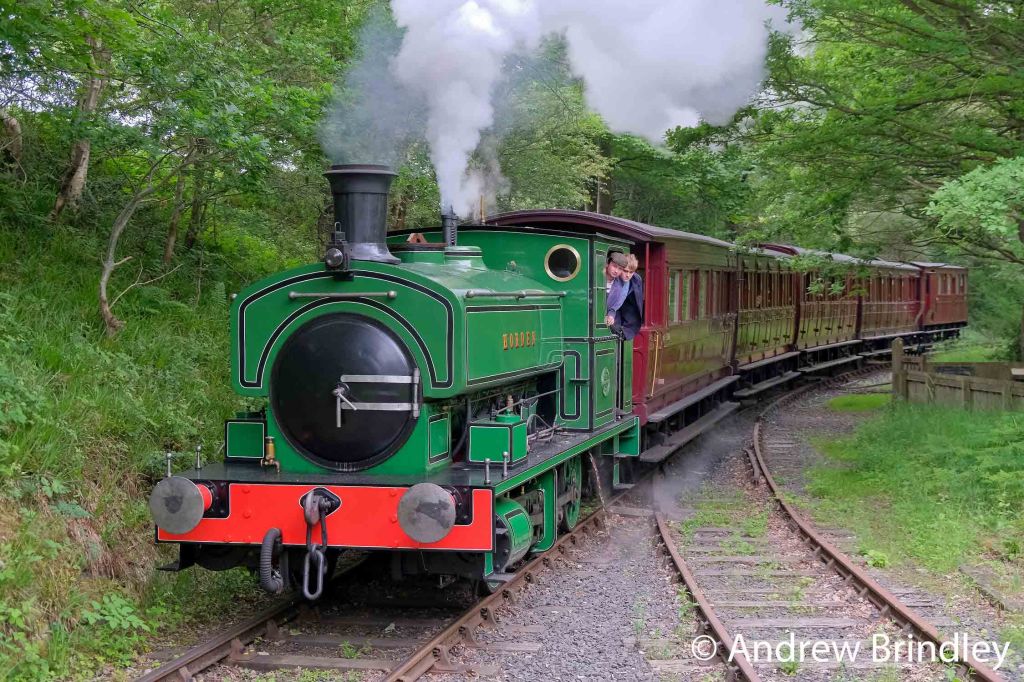

1015 arriving at Causey Arch on the Tanfield Railway – June 2021
