Hunslet Work No 2890 & 3882 WD75041 WD 107 0-6-0ST




Power Classification 4F
Introduced 1943-1946
Designer Riddle & Hunslet Engine Company
Company MOS
Weight 48t 5cwt – as built as 0-6-0ST
Driving Wheels 4ft 3in
Boiler Pressure 170psi
Cylinders Inside – 18in x 26in
Tractive Effort 23870lbf
Valve Gear Stephenson – (slide valve)



This locomotive was built as works no 2890 in 1943 by Hunslet Engine Company at Leeds as an austerity 0-6-0ST. It then entered service with the War Department as WD 75041.

When built the locomotive was the same as the LNER class J94.

J94

It was renumbered 107 when it moved to the Longmoor Military where it carried the name Foggia.

In the early 1960s the locomotive was withdrawn from service and sold back to Hunslet for modifications.

In 1964 the locomotive was rebuilt by the Hunslet Engine Company and then became Works Number 3882. The rebuild was the result of a bid to meet stringent restrictions on smoke emissions.

The Argentinian, Ing. L.D.Porta was commissioned by the Hunslet company to design certain modifications. Following the company becoming aware of Porta technology when, unsuccessfully, bidding for the contract to build the second batch of 75cm gauge 2-10-2 locomotives for RFIRT, Argentina.

Research suggests the locomotives may not have been quite as Porta would have wished. It is felt something could have been lost ‘in the translation’ between Argentina and the UK. However despite some shortcomings these locomotives did serve an important purpose in the development of steam. They were the very first application of Porta’s work outside of his native Argentina.

The rebuild involved fitting a form of Kylpor ejector system and the provision of a underfeed stoker with a modification the coal bunker to allow a hopper feed to the stoker.

Locomotive No.3883 was sent to BR Swindon in late January 1963 and for  a week in February 1963 it was utilised as Swindon MPD pilot locomotive. This period allowed experiments to be undertaken with various coal sizes. Later in February the locomotive was formally handed over to the BR Research Department (Swindon) for controlled road test. The testing was undertaken over the approximately 18 miles stretch of mainline between Yarnton and Kingham on the Oxford – Worcester mainline, today called the Cotswold Line.

Tests on Works Number 3883 demonstrated significant improvements over a standard locomotive with a steaming rate of 12,000lbs/hour being achieved compared with 6,000lbs/hour for an unmodified locomotive.A maximum output of 898hp was recorded, a very impressive figure for what was a shunting locomotive. These tests were the last time a steam locomotive was formally tested by British Railways with a dynamometer car.

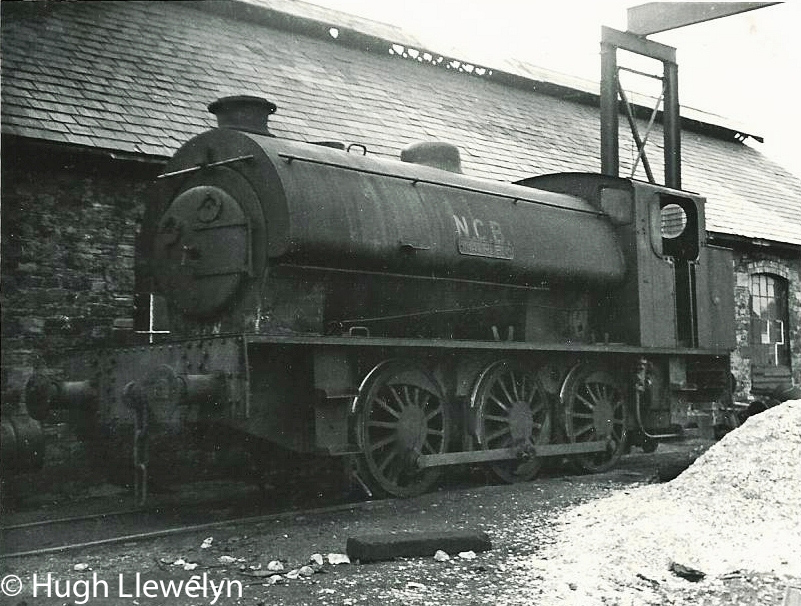

After modification and renumbering as No 3882 of 1964, it was bought by the National Coal Board and allocated to Maesteg washery until withdrawal in 1973. Here, it gained the name Maureen.

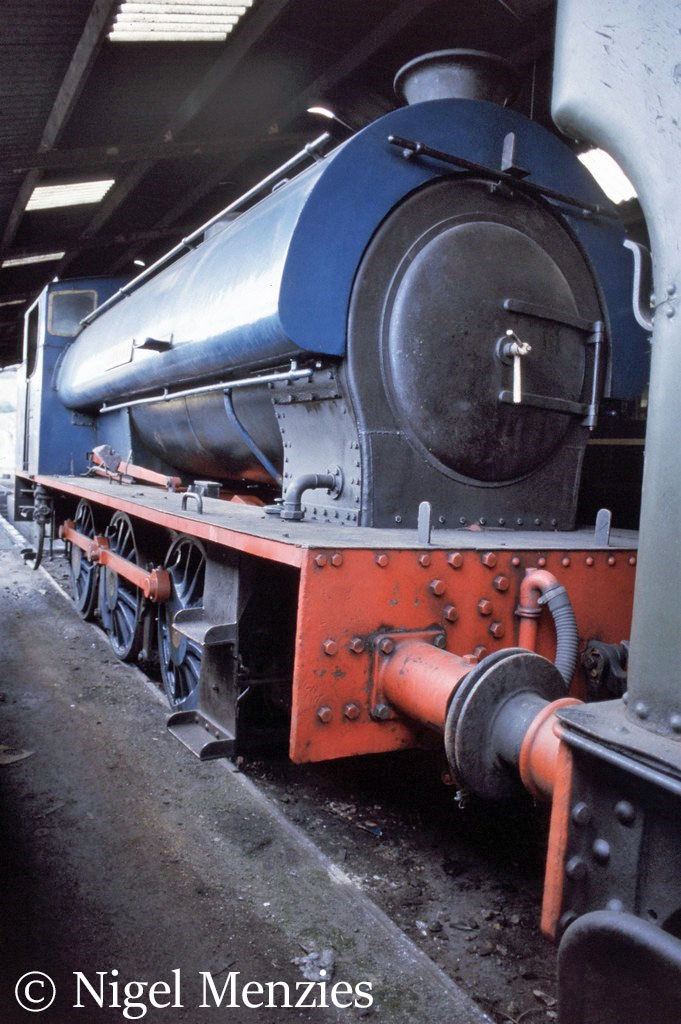

In 1976, Maureen was purchased privately for preservation and taken to Bristol, before arriving in Devon in 1978. Restoration was completed on the South Devon Railway in 1984 when the locomotive was renamed Barbara in memory of the wife of Dave Phelps, one of the then owners.

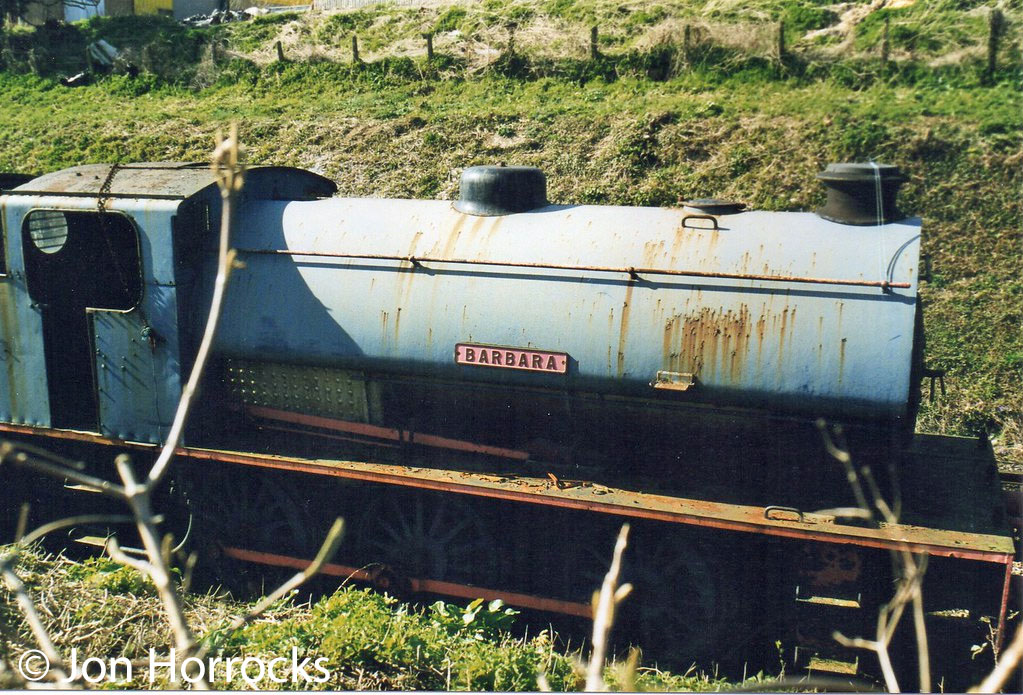

The locomotive was purchased for use on the Mid Hants Railway in the late 1990s.

The locomotive was then rebuilt and converted from a saddle tank to an 0-6-0 tender engine. This enabled it to be used as “Douglas” from the Thomas the Tank Engine stories. The tender  frame was formerly LMS Fowler 3,500 gallon tender which had been purchased from British Railways.

After several years on the Mid Hants Railway the locomotive was sold to a private owner and was subsequently moved to the Ribble Steam Railway at Preston in 2012.

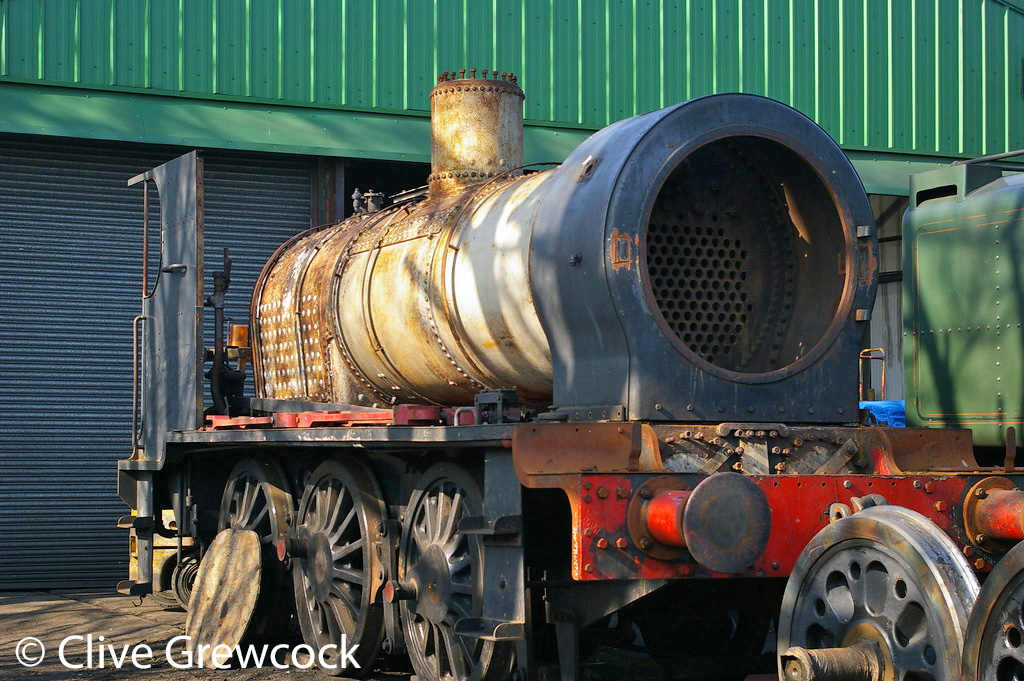

As part of an overhaul at the Ribble Steam Railway so cosmetic changes to its appearance where made to make it look more authentic.

The locomotive returned to steam numbered 2890 at the Ribble Steam Railway in September 2017.

The locomotive is to be based on the East Lancashire Railway.

Home Base Current Status Owner
East Lancashire Railway Operational

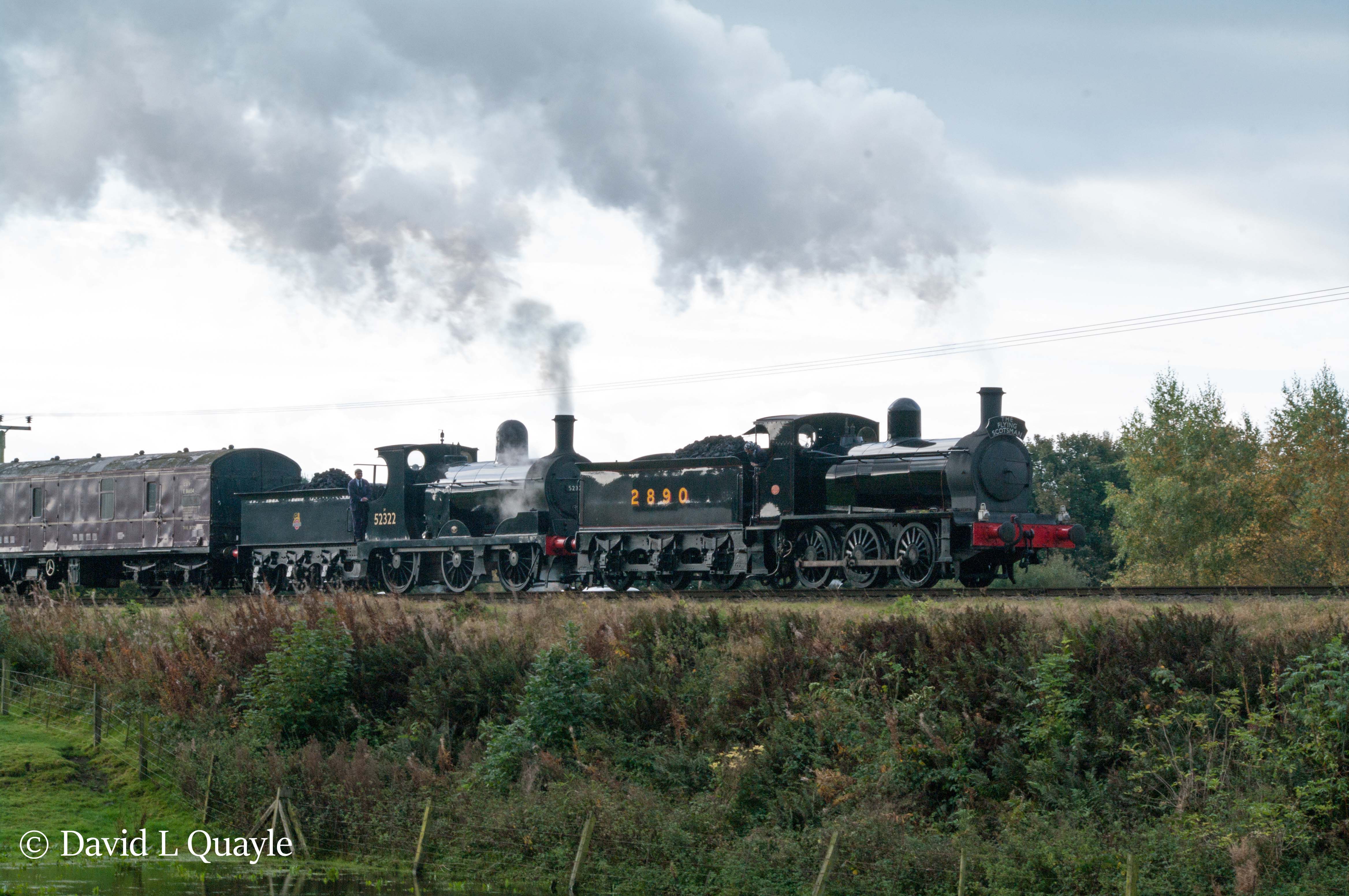

2890 & 52322 Irwell Vale.jpg 2890 and 52322 at Burrs Country Park on the East Lancashire Railway – 2017
2890 & 52322 Irwell Vale a.jpg 2890 and 52322 at Burrs Country Park on the East Lancashire Railway – 2017

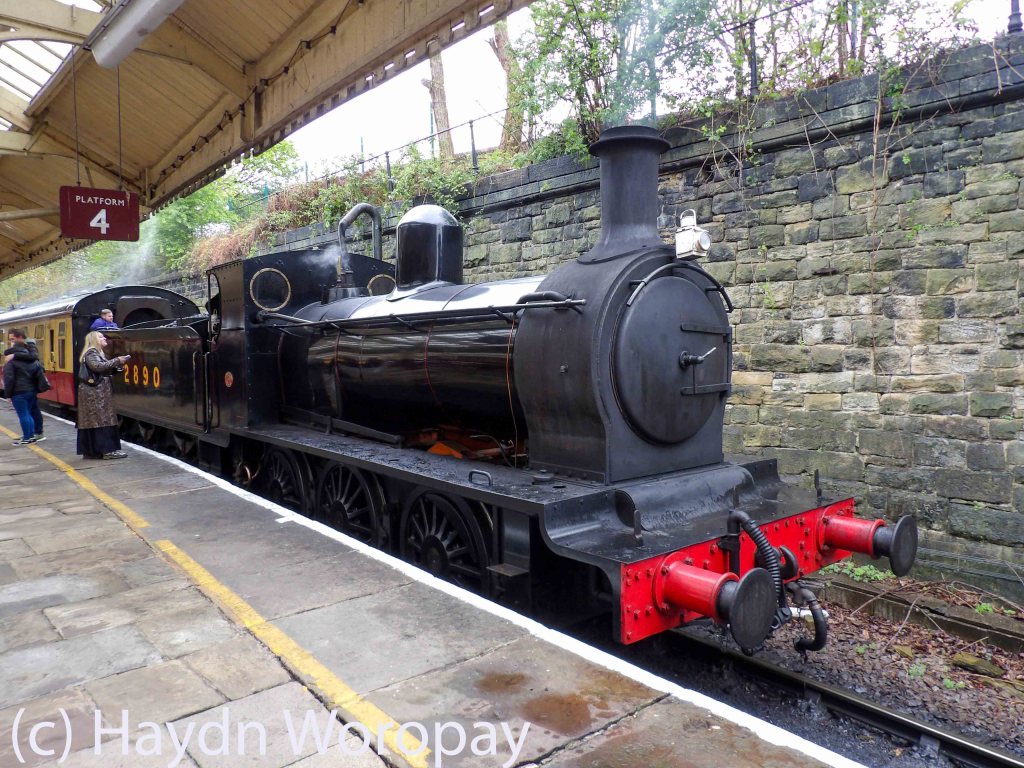

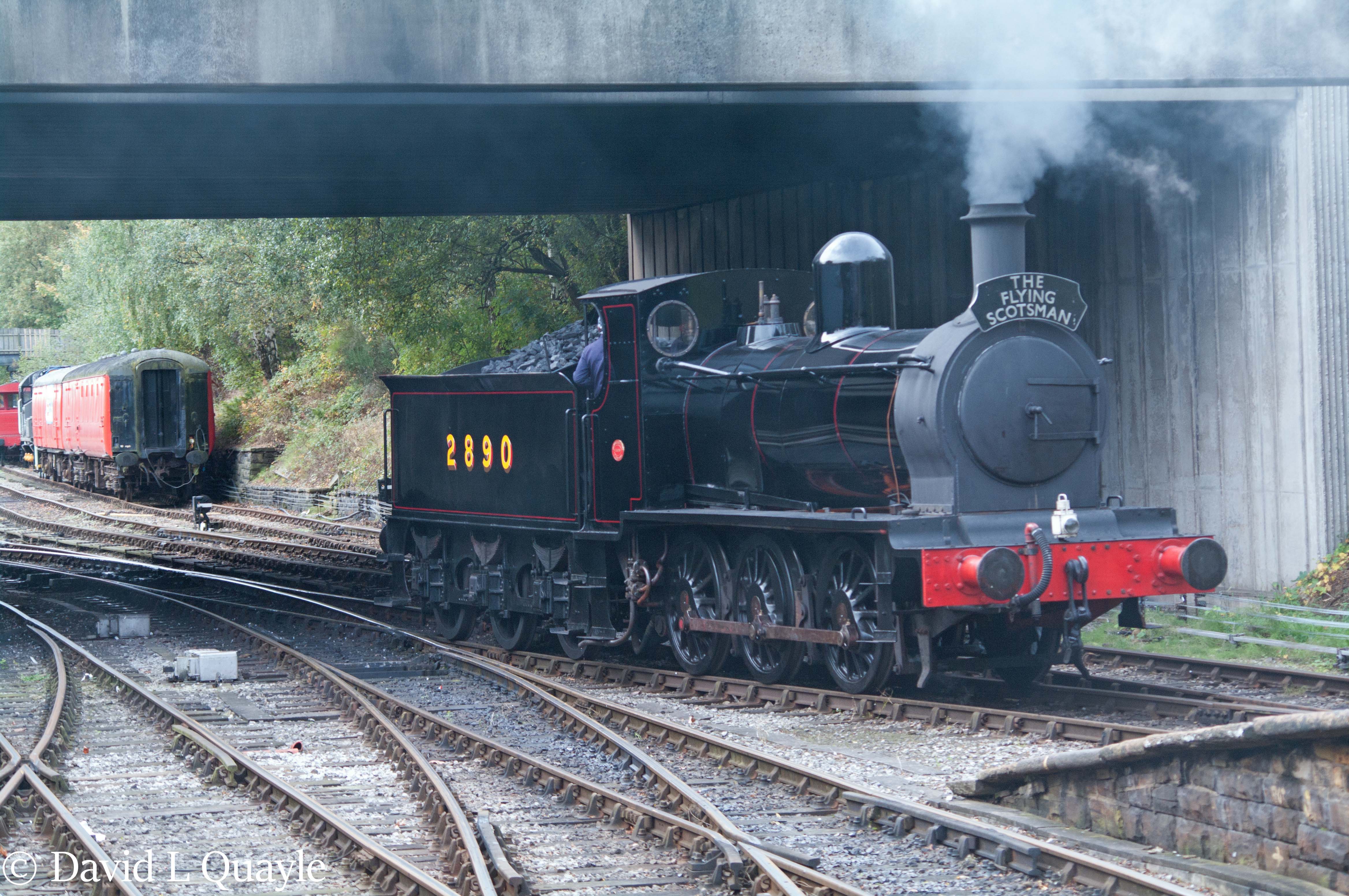

2890 Bury.jpg 2890 at Bury on the East Lancashire Railway – 2017
2890 Ramsbottom.jpg 2890 at Ramsbottom on the East Lancashire Railway – 2017
