2MT  78000 – 78064  2-6-0  BR Standard Class 2

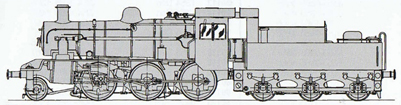

78000

Power Classification 2MT
Introduced 1952 – 1956
Designer Riddles, designed at Derby
Company BR
Weight – Loco 49t 5cwt
               Tender 36t 17cwt
Driving Wheels 5ft 0ins
Boiler Pressure 200psi superheated
Cylinders Outside – 16½n x 24in
Tractive Effort 18,515lbf
Valve Gear Walschaert (piston valve)

These locomotives were designed for light passenger work. Sixty-five engines were built at Darlington and they were the smallest engines in the BR range of standard types. They were similar in design to the 46400 LMS Ivatt class of 1946. They had a lower running plate than most of the BR Standard designs, and were fitted with BR3 3,000 gallon tenders.

The 84000 Standard was a tank engine version of the 78000 class design.

 46400 LMS 46400 class introduced in 1946 by Ivatt. Last one built at Swindon in 1953.
 78000 Standard 78000 class introduced in 1952
 84000 small Tank engine version – 84000 class introduced in 1953

The cab of the 78000 class locomotives was reduced from that fitted to the LMS engines to enable it to fit into a universal loading gauge.

Like the LMS predecessor the BR design had a tender cab to enhance crew protection and visibility when running tender-first.

These locomotives were often known by the nickname Mickey Mouse.

Number in Service.

Built Withdrawals No. in Service
BR Numbers Quantity 78000

46400

1952 78000-78003

   4

    4

115

1953 78004-78011

   8

  12

128

1954 78012-78044

 33

  45

128

1955 78045-78054

 10

  55

128

1956 78055-78064

 10

  65

128

1957-60   65

128

1961   65

127

1962   65

115

1963

      1

  64

111

1964

      4

  60

103

1965

    17

  43

  82

1966

    31

  12

  42

1967

    12

    0

    0

The first locomotive to be withdrawn from service was 78015 which was withdrawn from service whilst based at Darlington in November 1963 after a working life of less than ten years. The record for the shortest length of time in service goes to 78053 which was completed Darlington in November 1955 and was withdrawn from service in July 1964 having spent its entire working life based in Scotland.

The 78000 class engines remained in service longer than the Standard 84000 class tank engine version which were all withdrawn by the end of 1964.

Allocation of locomotives in service as at 1st of January.

1955

1957 1961 1964 1965 1966

1967

Scottish Region 10 10 12 10

9

Western Region

10

10 10 5

3

North Eastern Region

10

10 6

6

Eastern Region

6

London Midland Region

25

35 33 41 47 34

12

45

65 65 64 60 43

12

Scottish Region
Aberdeen Ferryhill

2

Aviemore

1

Bathgate 1 5

4

Corkerhill 1

1

Dawsholm

2

Dumfries 2 1

1

Hawick 2 4 4 2

1

Keith

3

Kittybrewster

1

Motherwell 5

2

Stirling

1

St Margarets 2

1

Stranraer 1

1

10

10 12 10

9

Western Region
Gloucester

3

Gloucester Barnwood

3

Hereford 1

1

Machynlleth

6

5

6

Oswestry

1

Worcester

4

4 3

1

10

10 10 5

3

North Eastern Region
Farnley Junction

3

Kirkby Stephen

3

4

Northallerton 6

5

Tweedmouth

3

West Auckland

7

1

10

10 6

6

Eastern Region
Canklow

2

Millhouses

4

6

London Midland Region
Aintree

1

2

Bangor 2 4

4

Bank Hall

5

4 4

3

Bescot

1

Bolton

8

Cancklow

2

2

Chester

3

Chester Northgate

7

Coalville

1

Crewe North

1

1

2

Crewe South 2 5

4

Derby 6

1

Gorton

5

Kettering

2

2

Kirkby in Ashfield

1

Lancaster

1

Leicester Midland

2

2 4

4

Lostock Hall 2 4 6

4

Millhouses

3

4

Northwich

2

Nottingham 4 3

5

Nuneaton

5

Oxley

1

1

1

Preston

3

2

2

Rhyl

5

1

3

Sheffield Grimesthorpe

1

Shrewsbury

4

Skipton

2

Stoke 2 2

2

Toton

3

Trafford Park

4

Watford 3

3

Widnes 4

3

Wigan

5

6

6

Wigan Springs Branch

2

Willesden 8

8

25

35 33 41 47 34

12

45

65 65 64 60 43

12

  • Oxley depot was transferred from the Western Region to the London Midland Region in September 1963.
  • Canklow and Millhouses depots were transferred from the London Midland Region to the Eastern Region in February 1958.
  • During 1962 four locomotives spent time at Stratford, Doncaster and March depots.

Accidents and Incidents

BR Standard Class 2 2-6-0 No. 78018, hauling the 4.20am goods train, set out from Kirkby Stephen on the morning of Thursday, 24 February 1955, hauling eight 20-ton wagons of limestone and minerals. At 5am, it became stuck at Bleath Gill near Stainmore Summit which at 1370 feet high was the highest point on any railway line in England until its closure in 1962. The train, along with its crew remained stranded there until 3pm the following Monday, when the first rescue teams arrived hauled by 78019.

The task was an arduous one; winds of 40 mph were blowing across the summit, which coupled with the arctic-like weather conditions to produce a terrible wind chill factor.

Having dug the engine out of the snowdrift during the night, moving the steam locomotive was another difficult task; when a steam train gets becomes stuck in snow, the heat from its boiler melts the snow around it, but as the boiler cools the melted snow refreezes as ice, meaning that the engine is frozen solid. Workmen had to drape paraffin-soaked rags around the moving parts of the engine and set fire to them to thaw the motion.

78051-Dumfries-April 1966.jpg 78051 at Dumfries-April 1966. 78051 spent all of its working life based at Scottish sheds. It was withdrawn from service in November 1966 whilst based at Dumfries.
