5193 which was originally built in 1934.

As 5193 the locomotive started its working life at Stourbridge Junction shed where it was mainly used on suburban passenger trains to Birmingham Snow Hill and Wolverhampton Low Level. Apart from a brief spell at Oxley shed at Wolverhampton between July and September 1939 it was based at Stourbridge for 18 years.

BR motive power depot allocations.

Date ArrivedDepot
January 1948Stourbridge
October 1952Truro
July 1953St Blazey
October 1960Whitland
October 1960Taunton
November 1960Whitland
March 1962Stored
May 1962Severn Tunnel Junction

During May 1956 when the turntable at Penzance shed was undergoing repairs 5193 and othe members of the class were employed to haul the express passenger trains to avoid express locomotives having to run tender first.

5193 was withdrawn from service June 1962 and sold for scrap to Woodham Brothers and it arrived in the Barry scrapyard in September 1962.

5193 was purchased by the 5193 Fund and moved by road to Steamport at Southport in August 1979. Following the closure of Steamport and the removal of the stock to the newly formed Ribble Steam Railway at Preston 5193 was purchased by the West Somerset Railway (WSR). It was moved to Mineheadin December 1998.

In June 2000 at the AGM of the WSR plc it was formally announced that a plan had been drawn up to convert the 2-6-2T to a 2-6-0 tender locomotive which would provide the railway with an operating flexibility due to its larger water and coal capacity.

The decision by the West Somerset Railway to convert 5193 followed a detailed inspection which showed that the side tanks, rear frame and bunker were very heavily corroded and would have to be totally replaced. It was considered that a viable option was to discard the side tanks, cut the frames behind the rear footplate steps and build a new 9300 (later 7322 class) style cab. The work to convert the locomotive was less than rebuilding 5193 as a 5100 class tank engine and it was possible to return it to service in steam quicker using a hired tender.

Interestingly a Mogul with a no 2 boiler was part of G.J.Curchward’s standardisation plan of the early 1900s, although it was never built. C.B.Collett also considered converting Prairies to Moguls to provide a lighter weight 2-6-0 than the 43xx Class but the weight saving was eventually judged to be too small to justify the conversion.

The chassis forward of the cab is almost identical in the two classes. However, the standard no 2 boiler and smokebox of the 5101 class is slightly smaller in diameter (by about 5 ins) and has lower pitch than the standard No 4 boiler fitted to the 43xx Moguls (and the 3150, 42xxx, 5205 and 72xx tanks). Nevertheless, a close resemblance to a 7322 series Mogul with outside steam pipes, lever reverse and flanged motion bracket, later Collett style cab and 3000 gallon tender was achieved.

5193 has now returned to service as a 2-6-0 numbered 9351.

See 9351 for more recent information.

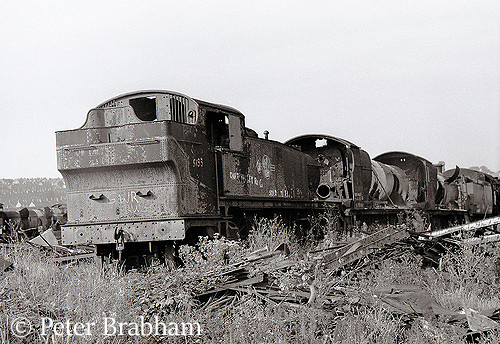

5193 in Woodham’s scrapyard at Barry – c1976

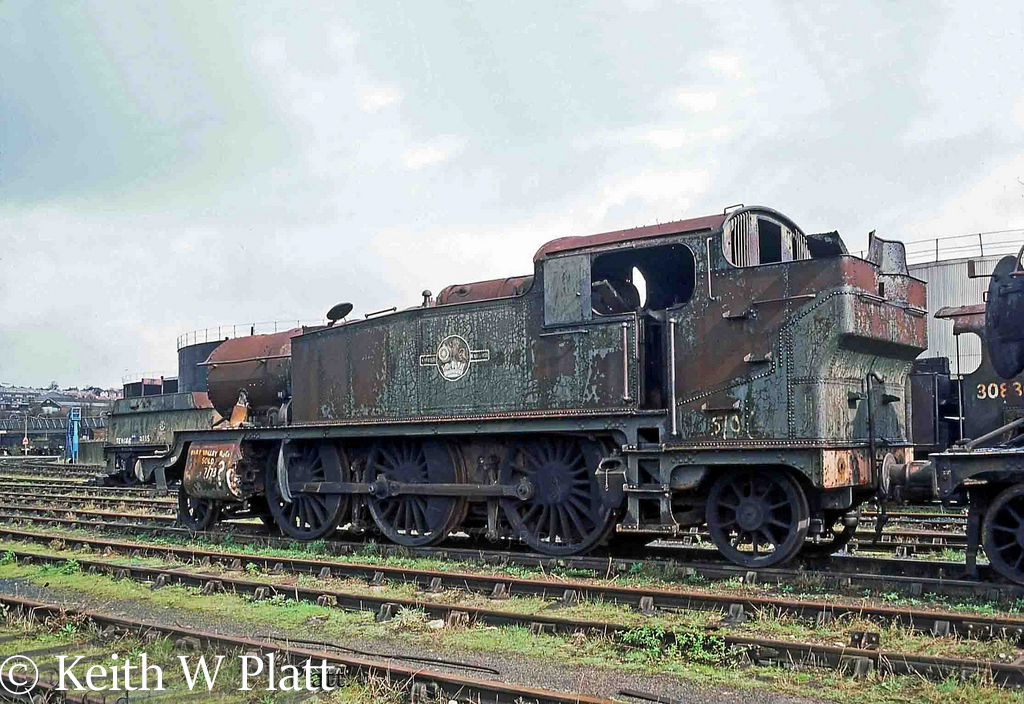

5193 in Woodhams scrapyard at Barry – March 1977
