Class A 4-4-0T Metropolitan Railway


Class AClass B
Power Classification
Introduced1864 – 18701879 – 1885
CompanyMetropolitan RailwayMetropolitan Railway
Weight45t 0cwt42t 3cwt
Driving Wheels5ft 10ins5ft ½in
Boiler Pressure150psi120psi
Cylinders17in x 26in16in x 20in
Tractive Effort13,056lbf
Valve Gear

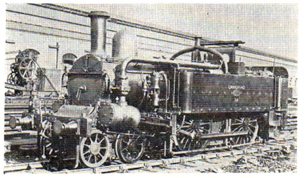

The Metropolitan Railway A Class and B Class were 4-4-0T condensing steam locomotives built for the Metropolitan Railway by Beyer Peacock, first used in 1864. A total of 40 A Class and 26 of the slightly different B Class were delivered by 1885. Used underground, the locomotives condensed their steam, and coke or smokeless coal was burnt to reduce the smoke.

When the Metropolitan Railway (Met) opened in 1863 the Great Western Railway (GWR) provided the services with their Metropolitan class locomotives. However, the GWR withdrew their services in August 1863, and the Met bought their own locomotives, which needed to condense as the line from Paddingdon to Farringdon was underground. A tender was received from Beyer Peacock of Manchester for building eighteen locomotives at £2,600 each that would be available in six months. The design of the locomotives is frequently attributed to the Metropolitan Engineer John Fowler, but the design was a development of a locomotive Beyers had built for the Spanish Tudela & Bilbao Railway, Fowler only specifying the driving wheel diameter, axle weight and the ability to navigate sharp curves.

The 4-4-0 tank locomotives delivered in 1864 had 40 cubic feet bunker. As they were intended for an underground railway, the locomotives did not have cabs, just a simple spectacle plate. To reduce smoke underground, at first coke was burnt, changed in 1869 to smokeless Welsh coal.

These were followed by five more each year from 1866 to 1868, and six in 1869. These were supplied with a tender capacity of 67 cubic feet; after 1868 the boiler pressure had been increased to 130 psi. From 1879 more locomotives were needed, and these were a modified design, with Adams bogies, and the wheelbase was 8 feet 1 inch, shorter than the previous locomotives at 8 feet 10 inches. A total of 24 of these later locomotives were delivered between 1879 and 1885.

The locomotives were numbered in sequence as they arrived, and in 1925 the locomotives built before 1870 were classified as A class and those built after 1879 as B class. When five Burnett 0-6-0 tank locomotives were received in 1868 for the St John’s Wood Railway they took the numbers 34-38, so the A class consisted of numbers 1-33 and 39-44. After the 0-6-0Ts were sold, the B class reused the earlier numbers, becoming 34-38 and 50-66.

Between 1880 and 1885 seventeen locomotives were reboilered at Edgware Road, after 1886 this was done at Neasden Depot. At Neasden boiler pressure was increased to 150 pounds per square inch and after 1894 the wheel diameter was increased to 5 feet 10 inches and the cylinders increased to 17½in. Cabs were fitted after 1895 although these became too hot when working in tunnels and were not popular with crews.

Breaking coupling rods were a cause of accidents in 1873 and 1884 and in 1885 the cross section was increased. The problem was eventually solved in 1893 when the original Allan motion was replaced by a Gibson & Lilley link motion, this being fitted to all locomotives by 1896.

In 1898 engine 62 was experimentally fitted to burn oil, but oil of the right quality for underground use was too expensive. In 1921 further experiments were carried out with oil burning.

The Metropolitan Railway A and B class locomotives worked the whole of the Metropolitan Railway. In 1884 most of the locomotives up to number 20 were stabled at Neasden, 27 to 33 were used on the East London Railway, the others from 21 to 50 were at Edgware Road and 51 to 66 at Hammersmith for the Hammersmith & City line.

After electrification of the inner London lines in 1905-06 most of the locomotives were redundant. By 1907 forty had been sold or scrapped, number 1 having been withdrawn earlier in 1897 after it was involved in an accident at Baker Street. Many locomotives went to R. Fraser and Sons for scrap by 1914, thirteen locomotives having been retained for shunting, departmental work and working trains over the Brill Tramway.

The purchase of other locomotives, the closure of the Brill tramway (in 1935) and the transfer of freight duties to the LNER saw all but one of these remaining locomotives sold or scrapped around 1936.

22 was sold to the District Railway in 1925 and scrapped in 1931. Some of the sold locomotives survived a little longer: 7, sold to the Mersey Railway was withdrawn in 1939 and 44 was sold to Pelaw main colliery in Durham and survived until 1948.

By 1936 only one remained and it was withdrawn in 1948, and it is now preserved at the London Transport Museum.


Metropolitan Railway 23 (L45)

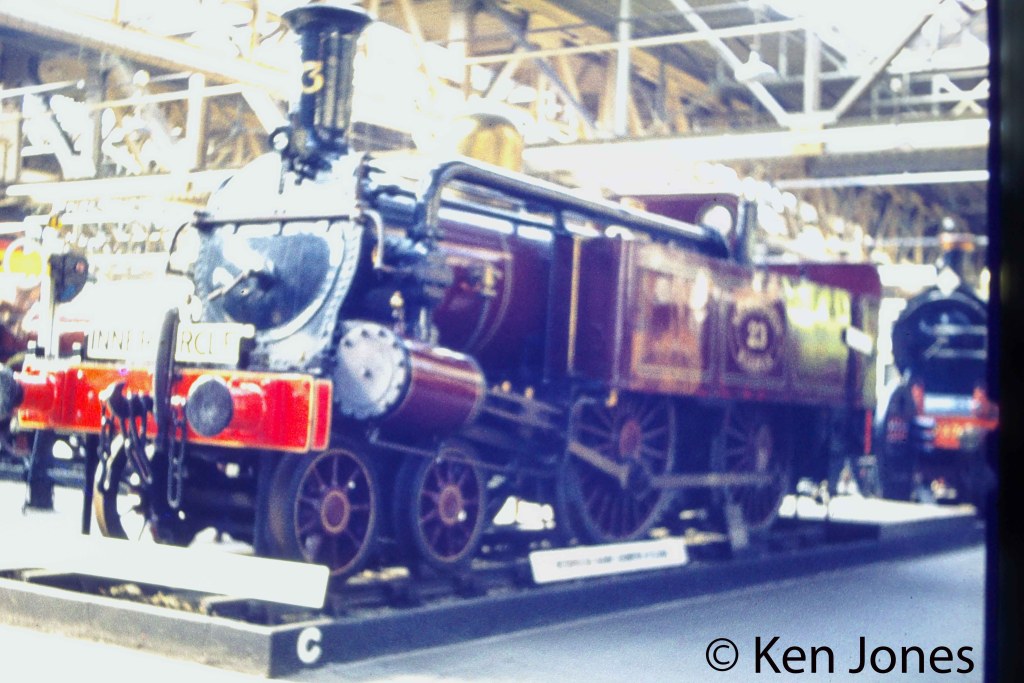

Metroplotitan 23 in Clapham Museum - November 1968.jpg

This engine was built by Beyer Peacock in 1866 for the Metropolitan Railway and subsequently passed into the ownership of the London Transport Board in 1934. It was renumbered L45 in 1938.

In 1905 when the underground lines were electrified the locomotive was moved to the Brill Tramway where it worked until the line closed in 1936.

It was based at Neasden from where it was withdrawn from service in 1948.

It took part in the centenary parade in 1963 and has since been on museum display.

Class A locomotive 23 (LT45) is now on static display at the London Transport Museum at Covent Garden where it has been since May 1993.

Home BaseCurrent StatusOwner
London Transport MuseumStatic display

London Transport Museum

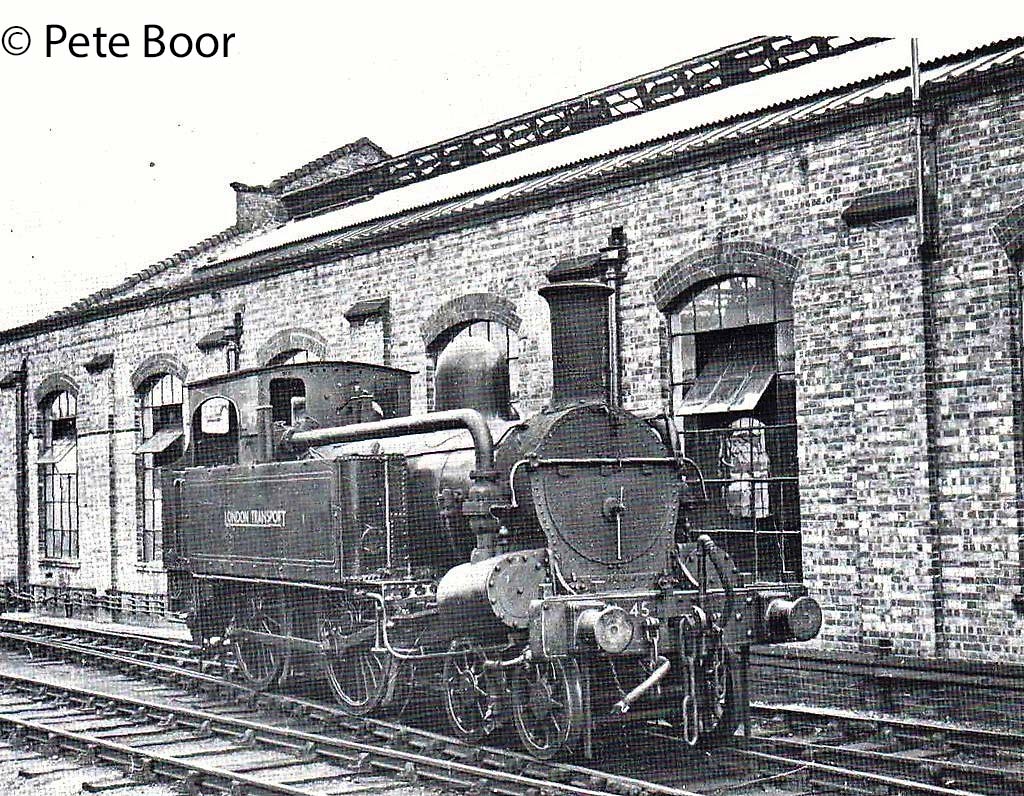

L45 at Lillie Bridge on unknown date
Met 23 at Quainton – Circa 1933
L45 at the London Transport Neasden steam shed – October 1958
23 in Neasden Works – May 1963

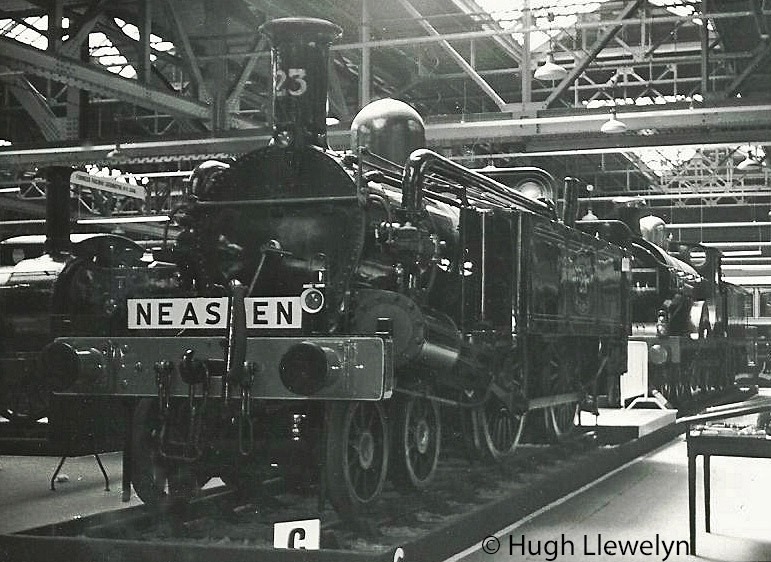

23 in the British Transport Museum at Clapham – July 1966
