Fletcher Jennings & Co    Works No 158    No 3 Baxter 0-4-0T

Fletcher Jennings 158.jpg
Driving Wheels3ft 6ins
Boiler Pressure150psi
CylindersOutside – 12 in x 20in
Tractive Effort8,740lbf

This locomotive was built at Lowca by Fletcher Jennings & Co in 1877 for the Dorking Greystone Lime Works at Bletchworth in Surrey.

It has bar frames, disc wheels and Fletcher, Jenning’s own patented variation of Allen Straight Link motion.

The locomotive became the No 3 but after 1932 it also bore the name Captain Baxter which became just Baxter in 1947.

The locomotive was withdrawn from industrial service in 1959 acquired by the Bluebell Railway where it moved to in August 1960.

It was laid aside after a single steaming soon after arrival at the Bluebell, it was only in 1982 that it returned to traffic after a comprehensive overhaul.

The locomotive is really too small to haul any of the regular passenger trains and did not have adequate braking capacity to even shunt the carriage yard until 2011 when it was fitted with vacuum brakes and a steam heating capability. Since then it has worked the occasional demonstration goods train, and acted as station pilot at Sheffield Park.

The locomotive last returned to service in 2010 and has a boiler certificate which is valid until July 2020.

In July 2016, Baxter was invited to the Talyllyn Railway to celebrate Dolgoch’s 150th birthday and became the first standard gauge engine to visit the railway. Dolgoch was also built by Fletcher, Jennings & Co.

The locomotive was taken out of service in October 2018 when the boiler certificate expired and is now on static display in the new exhibition building at Sheffield Park.

158 Baxter at Bletchworth some time before 1959
Baxter at Sheffield Park on the Bluebell Railway - June 1964.jpg
158 at Sheffield Park on the Bluebell Railway – June 1964
Baxter at Sheffield Park on the Bluebell Railway - May 1972.jpg
158 at Sheffield Park on the Bluebell Railway – May 1972
158 at Horsted Keynes on the Bluebell Railway – June 1982
Fletcher Jennings 158.jpg
158 at Beamish Museum – April 2012

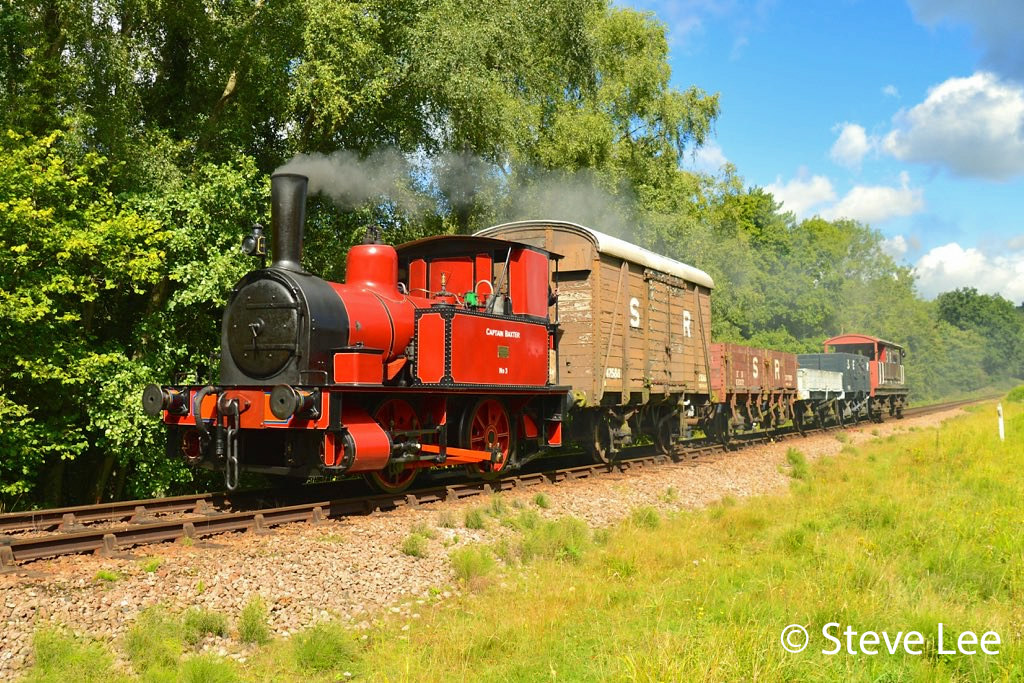

158 on the Bluebell Railway – August 2017

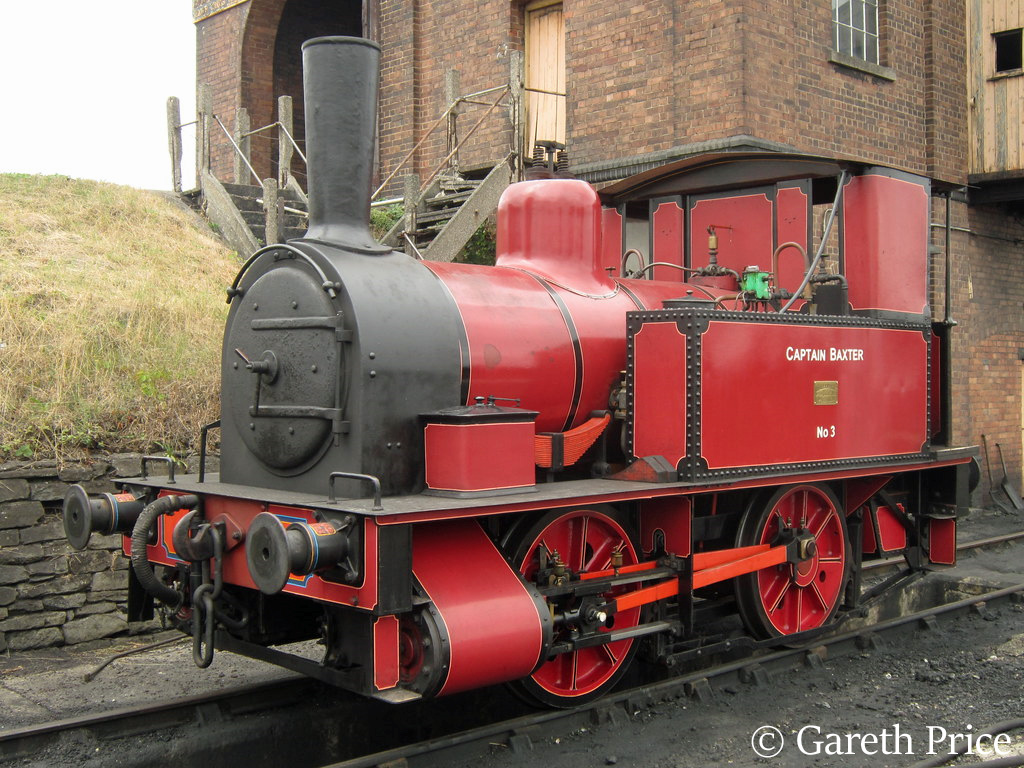

158 at Didcot Railway Centre – August 2018
