Lion  0-4-2  Liverpool & Manchester Railway

lion

Power Classification
Introduced 1838
Designer
Company Liverpool & Manchester Railway
Weight 26t 11cwt (current engine and tender weight)
Driving Wheels 5ft 0ins
Boiler Pressure 50psi
Cylinders Inside – 12in x 18in (now 14in x 18in)
Tractive Effort 2,160lbf
Valve Gear Gab type (slide valve)

Lion was an early Liverpool & Manchester Railway (LMR) locomotive which was built by Todd, Kidson & Laird in 1838 and entered service as L&MR 57. It was one of two engines built in 1838 to haul freight on the line – the other was 58 Tiger. Todd, Kitson & Laird built another two 0-4-2 locomotives for the LMR in 1939 (Elephant and Buffalo). They could haul 200 tons and were capable of a top speed of 45 mph.

It was initially used to provide aid to other engines climbing the Whiston and Sutton inclines which took the railway up to the summit at Rainhill. Lion was capable of hauling 75 tons up the 1 in 96 Whiston incline unaided. The delivery of more powerful locomotives in 1839 meant that Lion was then deployed hauling “luggage trains” for the next twenty years.

The LMR was absorbed by the Grand Junction Railway in 1845 which subsequently became part of the London and North Western Railway (LNWR) a year later when it was renumbered 116.

Lion was given a new boiler in 1845.

It was withdrawn from service in 1859 when it was purchased by the Mersey Docks and Harbour Board for a price of £400. It was used as a stationary pumping engine since 1871 at the Graving Dock, Princes Dock on the River Mersey.

It was not until 1923 that any interest was taken in the old engine. In 1928 it was presented to the Liverpool Engineering Society, whose property it remains, in order that it might be preserved for the city of Liverpool.

After restoration at the Crewe railway works it took part in the centenary celebrations of the Liverpool and Manchester Railway in 1930, pulling a replica train. The restoration at Crewe was made possible due to the intervention of Sir Henry Fowler who said that the LMS would forgo the usual overhead costs of undertaking the work.

Lion took part in the LMR centenary celebrations in 1930 and the London and Birmingham Railway centenary in 1938

It has since steamed again on a number of occasions and was used in the filming in 1953 of The Titfield Thunderbolt. During the filming of ‘Thunderbolt’ the tender was damaged in a shunting accident, the damage still being visible. It was also used for the films Victoria the Great of 1937 and The Lady with the Lamp in 1951.

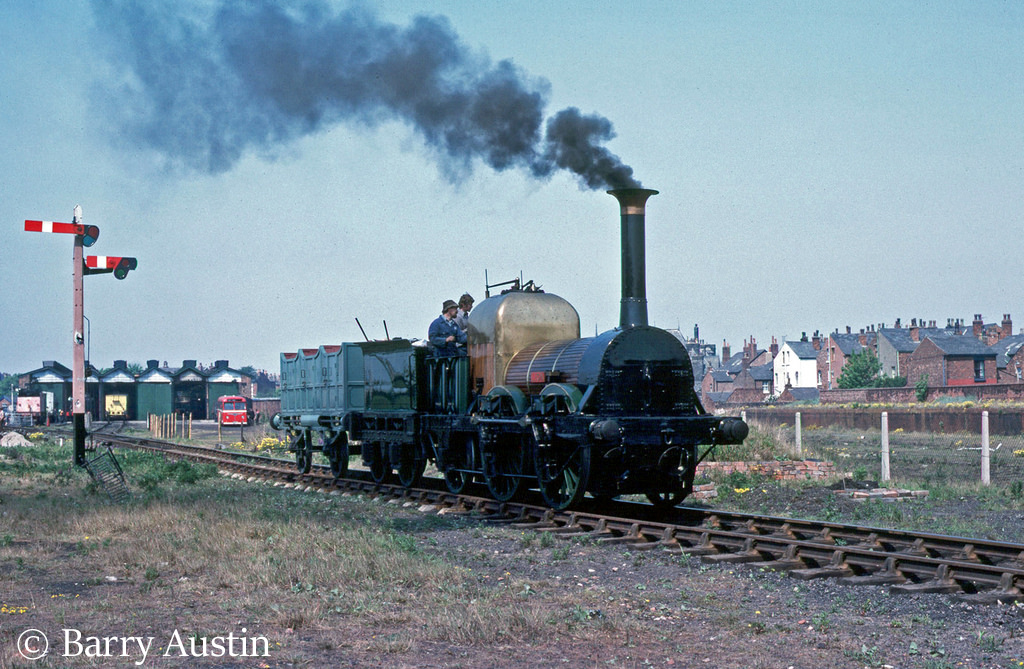

In 1979 Lion was again restored to working order in time to lead the cavalcade on the first day of the Rocket 150 celebrations at Rainhill. The restoration work this time was undertaken at the works of Rushton Diesels.

It was also in steam in 1987 for celebrations at Crewe. HRH the Prince of Wales rode on its footplate in the course of the Royal visit to Tyseley which took place during the last period LION was steamed in 1988 – its 150th birthday year.

In 1980 Lion was again restored to working order in time to lead the cavalcade on the first day of the Rocket 150 celebrations at Rainhill. It was also in steam in 1987 for celebrations at Crewe. HRH the Prince of Wales rode on its footplate in the course of the Royal visit to Tyseley which took place during the last period LION was steamed in 1988 – its 150th birthday year.

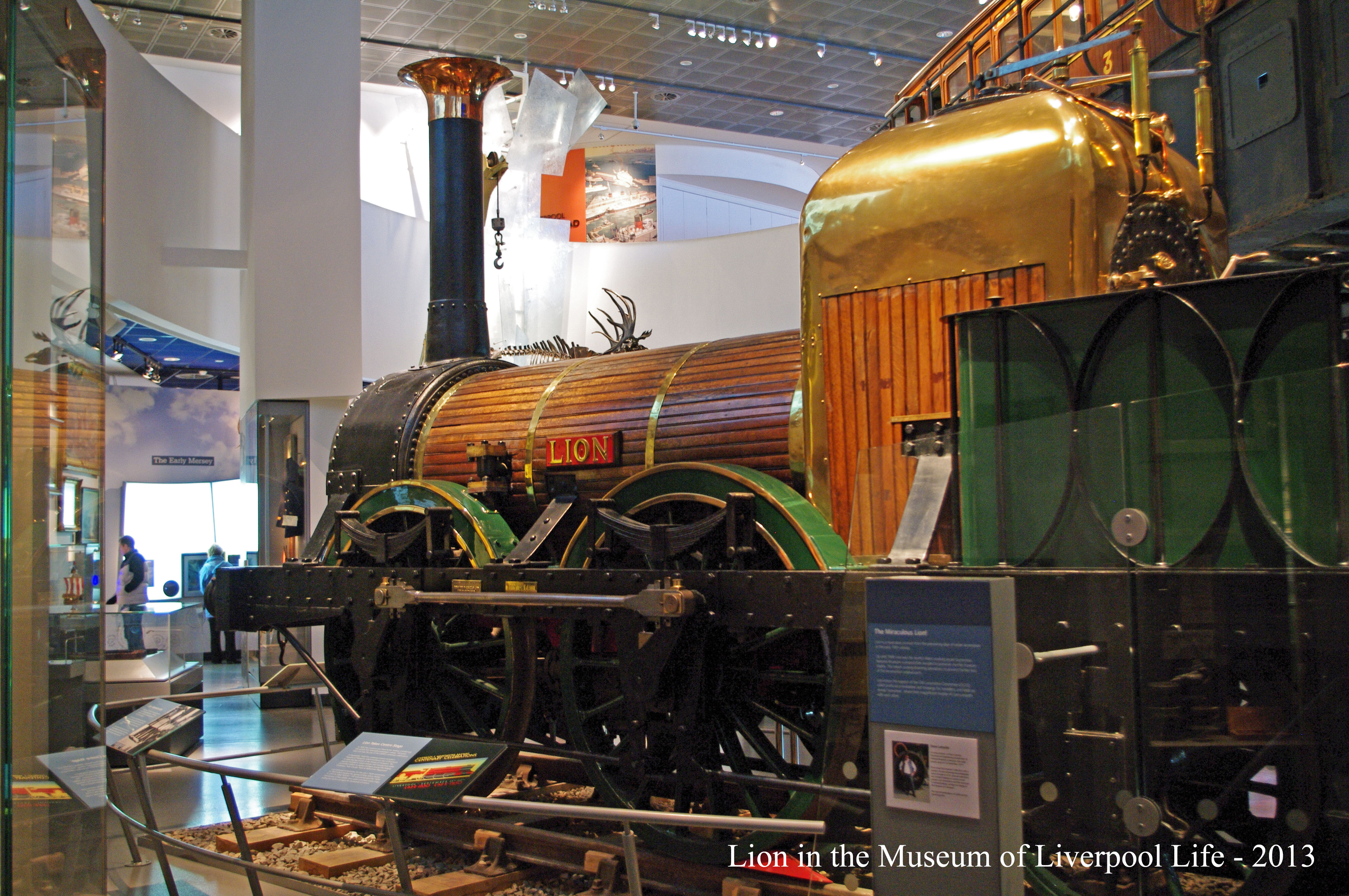

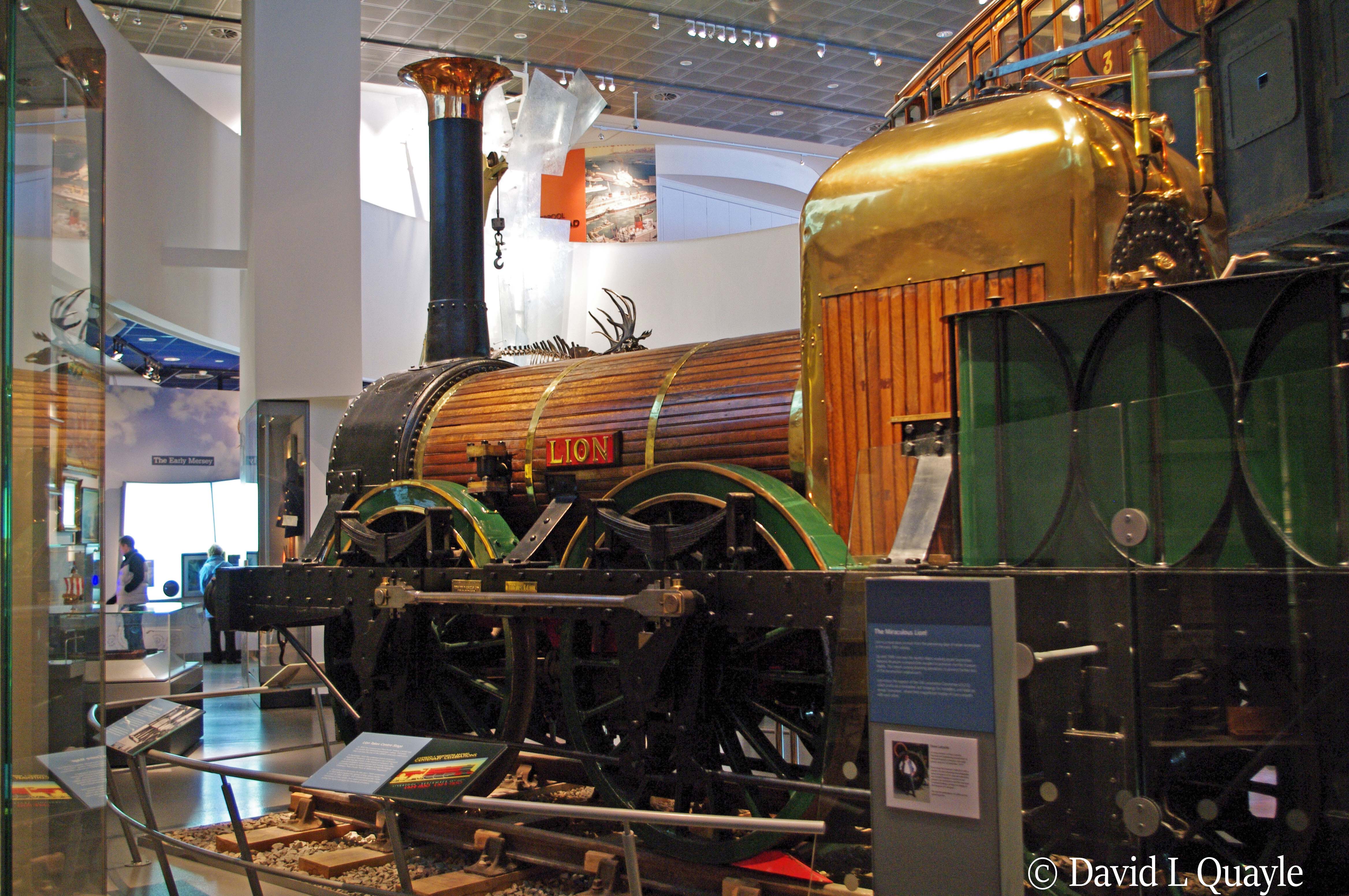

Before the last war Lion was kept on a plinth at Lime Street Station, Liverpool but latterly, having been passed to National Museums and Galleries on Merseyside, following the demise of the Liverpool Engineering Society, it was displayed in the Transport Gallery of Liverpool Museum. Following that museum’s successful lottery bid, however, it was displayed at the Museum of Science and Industry in Manchester from mid June 1999 until early 2007. It then returned to store in Liverpool. Lion has now been restored to display condition and is currently installed in the new Museum of Liverpool’s Great Port gallery, opened in December 2011. It is coupled to an early Furness Railway tender as its own tender was scrapped many years ago.



Home Base Current Status Owner
Museum of Liverpool Static display Museum of Liverpool

In 2018 it was proposed that the team who made the replica of Robert Stephenson’s Planet would build a Lion replica by 2030. The locomotive would carry the name Tiger.

The group are also considering building a copy Stephenson’s 0-2-2 Northumrian which hauled the inaugural Liverpool & Manchester train in September 1830.
