Robert Stephenson & Hawthorn     Works No 7845   No 12 67345 0-6-0T

This locomotive was built in 1955 by Robert Stephenson & Hawthorn to work at Hams Hall Power Station at Sutton Coalfield. Where it became No 12. No 13 (Works No 7846) which was also delivered new to Hams Hall in 1955 was built to the same design and has also been preserved.

Weight52t 12cwt
Driving Wheels3ft 8ins
Boiler Pressure180psi
Cylindersinside – 18in x 24in
Tractive Effort27,000lbf
Valve GearStephenson

Hams Hall was a large generating station which was situated in a spacious site between the Water Orton to Tamworth and Water Orton to Whitacre Junction lines. Hams Hall A was built in 1928 by the City of Birmingham. Two more stations (Hams Hall B and C) were later built on the site, reputedly the largest in Europe at the time of their construction. It was quoted as burning approximately 774,000 tonnes of coal a year – much of it pulverised coal and all of it coming by rail.

In 1957 the Central Electricity Generating Board (CEGB) took over the ownership of the plant.

At the power station a fleet of powerful locomotives were employed up to the mid 1970s. They were used to haul 1,000 ton coal trains.

The locomotive moved to the North Norfolk Railway in June 1974 where it was given a cosmetic restoration before being placed outside Sheringham station where it stayed for over 20 years.

It moved to Ruddington, at what is now the Great Central Railway at Nottingham, in 1998 for a contract cosmetic restoration.

For many years the locomotive has been on display at the Dales countryside Museum at Hawes at Wensleydale.  It carries the number 67345 as this was the number of the NER G5 class locomotive which hauled the last passenger train out of Hawes station in1959. The last freight train used the line in 1964 after which the line was lifted.

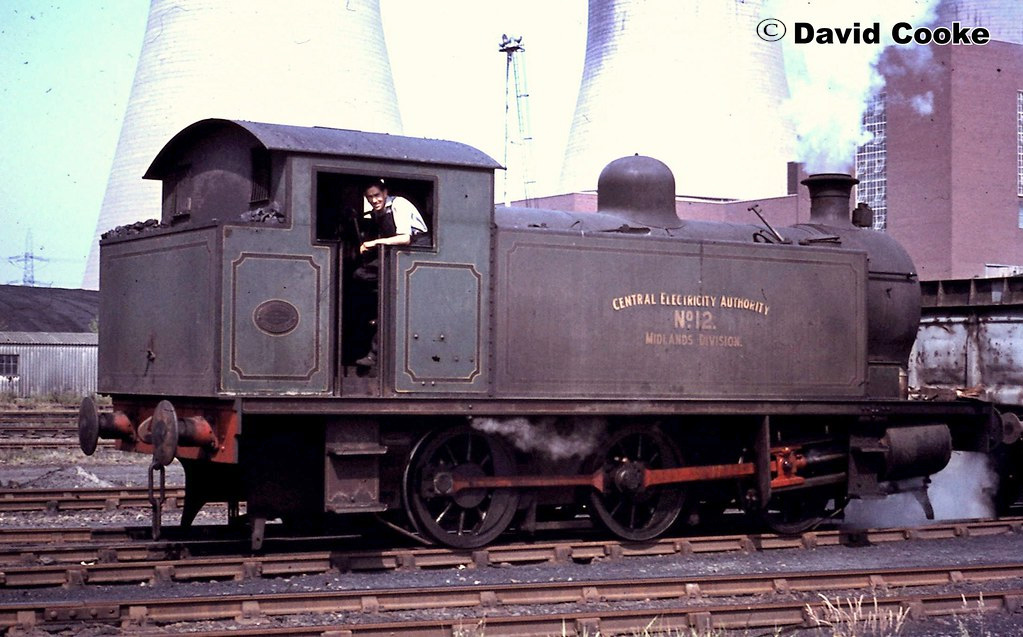

7845 at Hams Hall Power Station – circa 1966
7845 at Hams Hall Power Station alongside a new o-6-oD – circa 1966

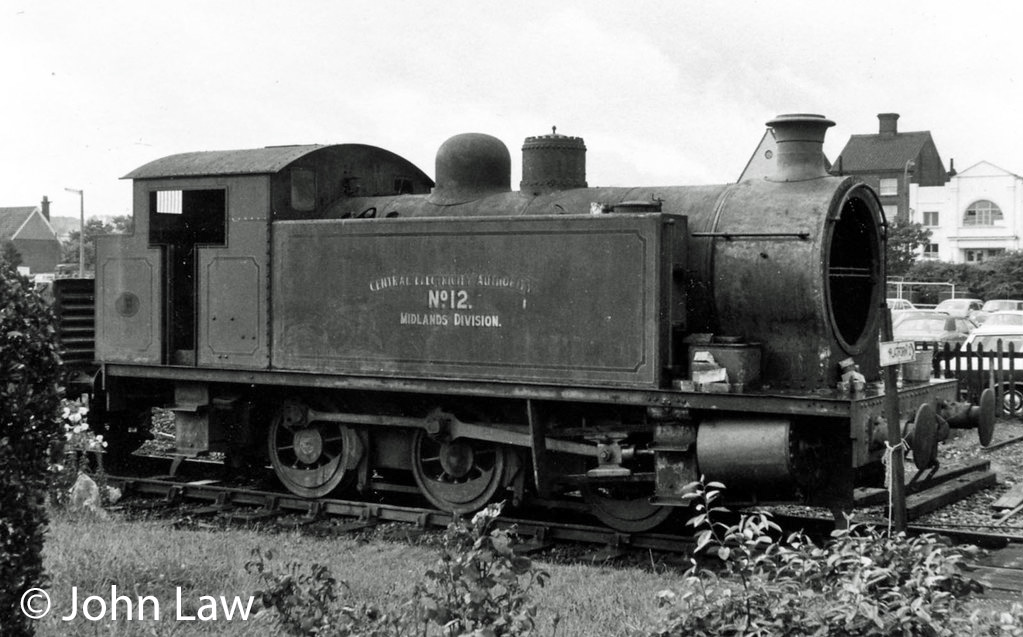

7845 at Sheringham on the North Norfolk Railway – Circa 1976
