34023 Blackmoor Vale/Blackmore Vale (SR 21C123 and BR 34023)

This image has an empty alt attribute; its file name is 34023-blackmoor-vale-at-sheffield-park-on-the-bluebell-railway-june-2012.jpg

21C123 Blackmoor Vale was built to an order placed in 1944 at a cost of £17,160 and entered traffic in February 1946. The locomotive was painted in the distinctive Southern Railway’s livery of Malachite green with three horizontal yellow stripes and fitted with a 4,500 gallon tender. It also had the characteristic Southern smokebox roundel with the date of construction, 1946, below the word Southern.

In 1948, after the formation of British Railways, the locomotive was renumbered into the Southern Railway’s classification as 34023 still with the distinctive Southern roundel on the smokebox and with the lettering British Railways on the tender sides. The locomotive lost the Malachite green livery in 1950 when based at Salisbury and was repainted in BR Green with two orange and black lines replacing the upper and lower yellow lines of the earlier livery. The first BR lion and wheel emblem appeared on the tender, replacing the British Railways lettering. At the same the name was altered to Blackmore Vale.

To improve the visibility from the cab the front of the cab was modified to a Vee shape and three side windows were fitted, a modification carried out in 1954. Other modifications appeared on the locomotive over the next ten years, including the resitting of the safety valves from the front of the boiler to the rear of the boiler and reducing the valves to two in number.

The tenders of the locomotives were cut down by removal of the tall tender sides (raves) to assist water filling and coal replenishment. Blackmore Vale’s tender was modified in 1962.

Initially the locomotive was allocated to Ramsgate but in 1947 moved to Nine Elms and three years later to Salisbury. In April 1951 it was transferred to Exmouth Junction where it stayed until moving to Eastleigh in August 1964 and then Nine Elms in April 1967.

In September 1964 the locomotive worked the Padstow portion of the last up Atlantic Coast Express.

34023 was withdrawn in July 1967 after completing 921,268 miles whilst in service and purchased by the Bulleid Preservation Society. It is one of only two of the WC and BB class that preserved that did not get sold to Woodham Brothers for scrap but came direct into preservation from BR. The other locomotive being 34051 Winston Churchill.

With the impending end of steam on British Railways in July 1967, a group of drivers and their colleagues from Nine Elms, the motive power depot near Waterloo, had formed the Bulleid Preservation Society in 1966 to purchase a Bulleid Pacific. Initially the two Battle of Britain class pacifics 34066, Spitfire and 34086, 219 Squadron were considered suitable locomotives. However with the end of steam in July 1967, West Country class pacifics 34023 Blackmore Vale and 34102 Lapford were the only unrebuilt Bulleid pacifics remaining in traffic. 34023, Blackmore Vale was the locomotive purchased as it was considered to be the most mechanically sound.

The engine and tender were purchased for £1,900 and the locomotive transferred to Longmoor, the site of the Longmoor Military Railway. BR stated on the bill of sale that ‘No Guarantee can be given as to the condition and suitability for future use’.

With the closure of Longmoor in 1970, the Society, now called the Bulleid Society Ltd. found a new home at Liss on the short lived Longmoor Steam Railway.

Another move occurred in 1971 with the closure of the Longmoor Steam railway. 34023 was moved by rail to Haywards Heath and then by low loader to the Bluebell Railway, where it has stayed.

Five years later, in 1976, 21C123, Blackmoor Vale returned to traffic on the Bluebell Railway, resplendent in Malachite green. It was repainted in BR Green in 1984, its final BR livery, with additional cosmetic work being undertaken to give the locomotive the ‘1967’ appearance. It was withdrawn from traffic in 1985. Its tender was lent to Battle of Britain class pacific 34072, 257 Squadron and was used with the locomotive on the Swanage Railway.

The locomotive was overhaul and a new tender body built in the Bluebell’s Workshop.

After the locomotive’s return to traffic in 2000 for the second time in preservation it once more became the Bluebell Railways flagship.

In 2005 a major mechanical failure caused by the fracture of one of the three combination levers and the bending of one of the other levers caused the locomotive to be taken out of service. Luckily, spare combination levers had been obtained when the engine was purchased, but for the future new items will need to be obtained. With the closure of the remaining railway forges, water jet profile cutting of a steel billet is the means to obtain a new item.

One aspect of the engine under constant surveillance was the firebox, which dates to the latter days of BR steam. Problems with the firebox were the main reason for the withdrawal of the locomotive from traffic on the Bluebell Railway in 2008. The constant heating and cooling cycle that a boiler undergoes in the preservation world is very far removed from the thirty day period in traffic with no heating and cooling cycle the engine was subjected to in BR days. The firebox problems were leaking stays and the comparative thinness of the inner firebox plate.

After withdrawal from traffic, the engine has been in store at Sheffield Park and on display to the public.

The Bulleid Society Ltd is aware that to return the locomotive to traffic will require the renewal of much of the inner firebox and with this in mind the have commenced the purchase of items necessary to build a new inner firebox for No. 21C123. Currently, two new thermic syphons, costing £15,000 are on order with future orders directed to the items necessary to construct a new foundation ring and then the formed plate for the combustion chamber, the area below the syphons adjacent to the firebox tubeplate.

34023 was on static display on the Bluebell Railway whilst awaiting overhaul. A new firebox is being made at South Devon Railway Engineering along with four others for 34039, 34059, 34101 and a spare.

In April 2020 it was reported that work had started on stripping down the locomotive to prepare for the lifting of the boiler which was sent to the South Devon Railway. It was then still considered that it would be another five years before a full overhaul of the locomotive commenced.

By the end of 2020 the new inner firebox had been completed at the South Devon railway.

In December 2021 it was said that it was hoped to have the locomotive back in steam in 2023. It is expected that the overhauled will be progressed once the work on classmate 34059 Sir Archibald Sinclair is completed during 2022.

In April 2022 it was anticipated that the boiler would be lifted off the frames in October 2022 and sent to the South Devon Railway for the fitting of the new inner firebox.

As of September 2022 it was planned that the locomotive would be moved into the workshops briefly during the spring of 2023 so that the boiler can be removed and sent to the South Devon Railway. The rest of work on overhauling the locomotive is not scheduled to start until the work is complete on 92240.

Home BaseCurrent StatusOwner
Bluebell RailwayAwaiting overhaulThe Bullied Society
34023 Blackmore Vale at Salisbury - August 1964.jpg

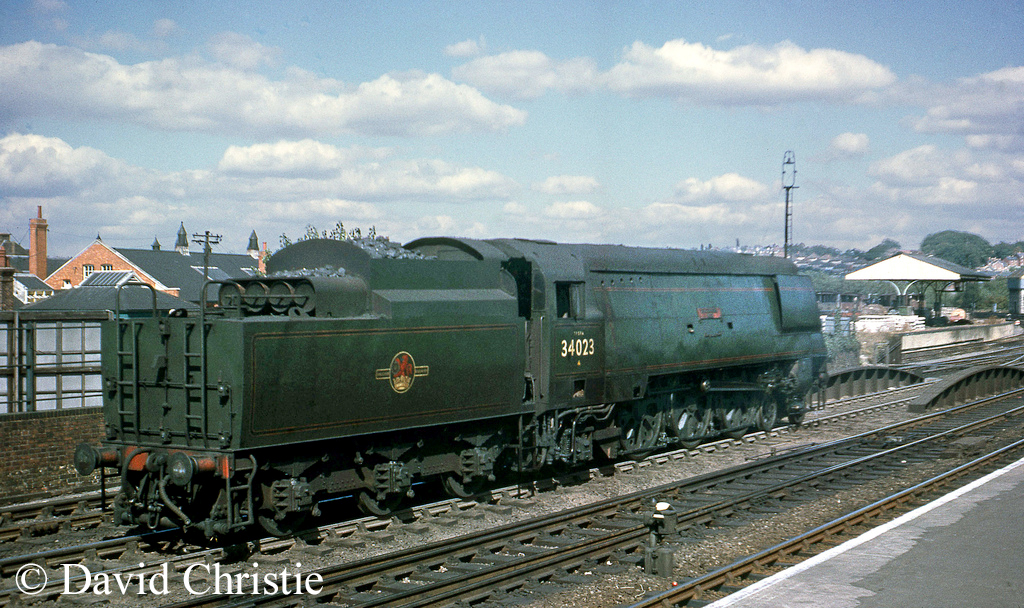

34023 Blackmore Vale at Salisbury – August 1964
34023 Blackmore Vale at Eastleigh - May 1966.jpg
34023 Blackmore Vale at Eastleigh – May 1966

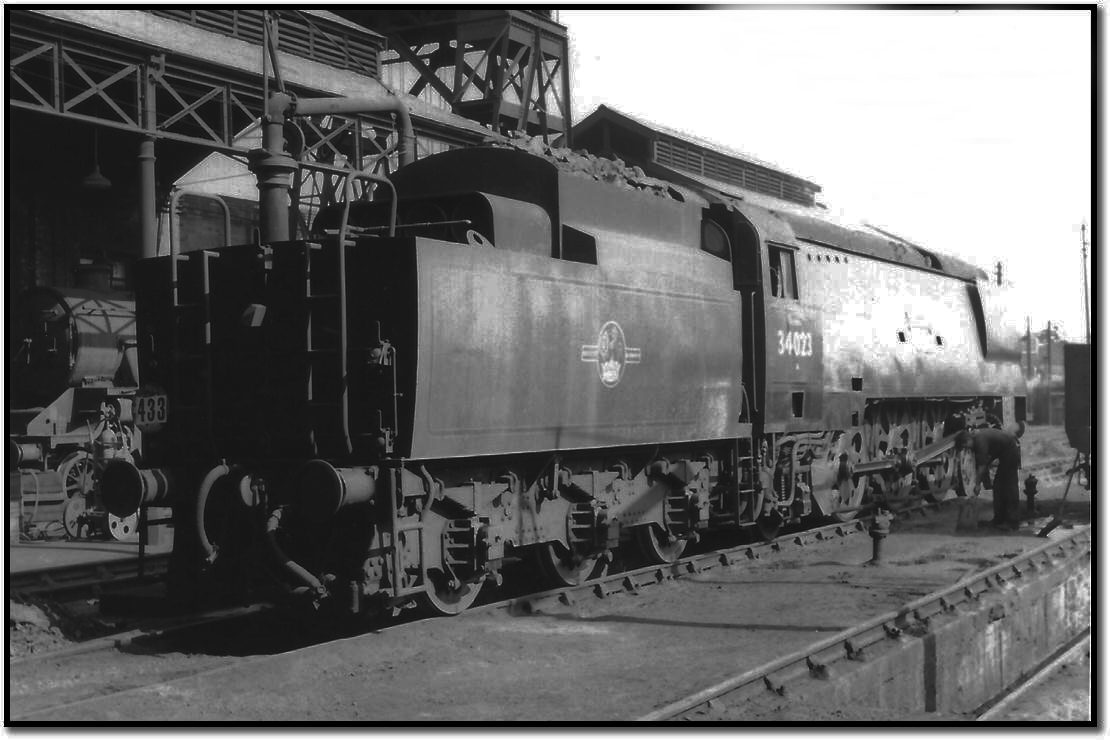

34023 Blackmore Vale on Bournemouth shed – September 1966
34023 Blackmore Vale at Waterloo - October 1966.jpg

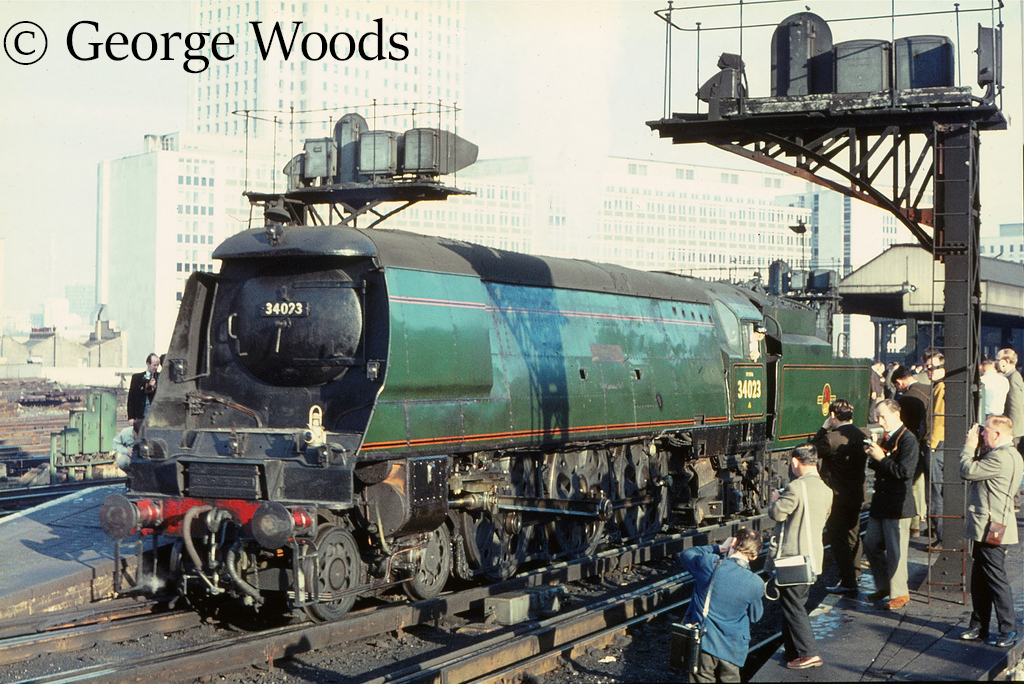

34023 Blackmore Vale at Waterloo – October 1966

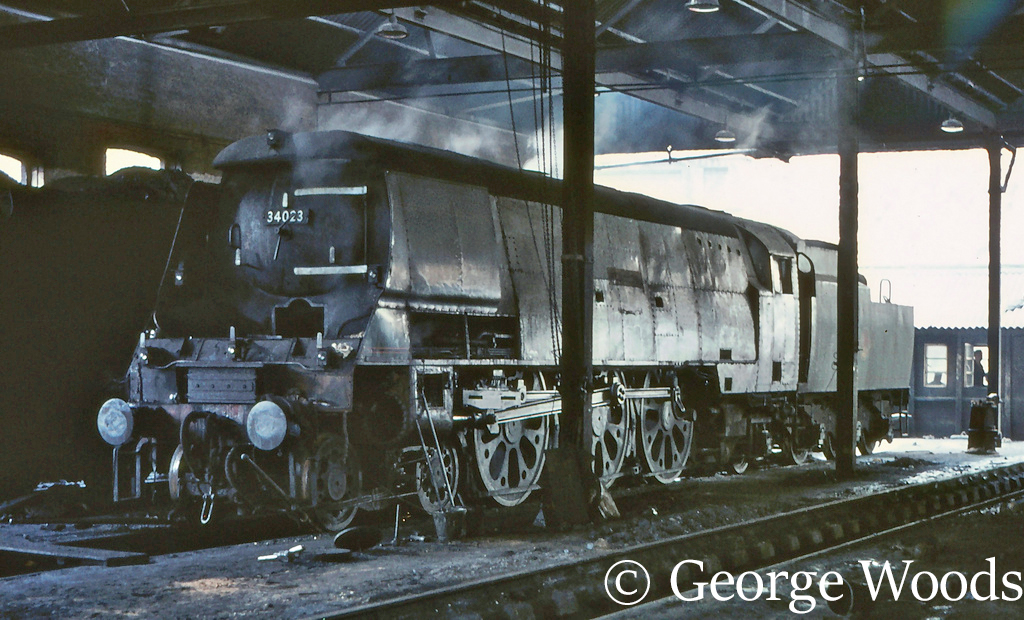

34023 Blackmore Vale on Guildford shed - February 1967.jpg
34023 Blackmore Vale on Guildford shed – February 1967

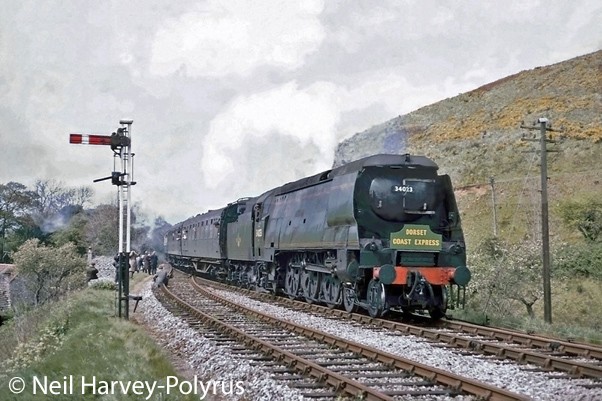

34023 Blackmore Vale arriving at Corfe Castle heading for Swanage – May 1967
34023 Blackmore Vale in Clapham Cutting - June 1967.jpg

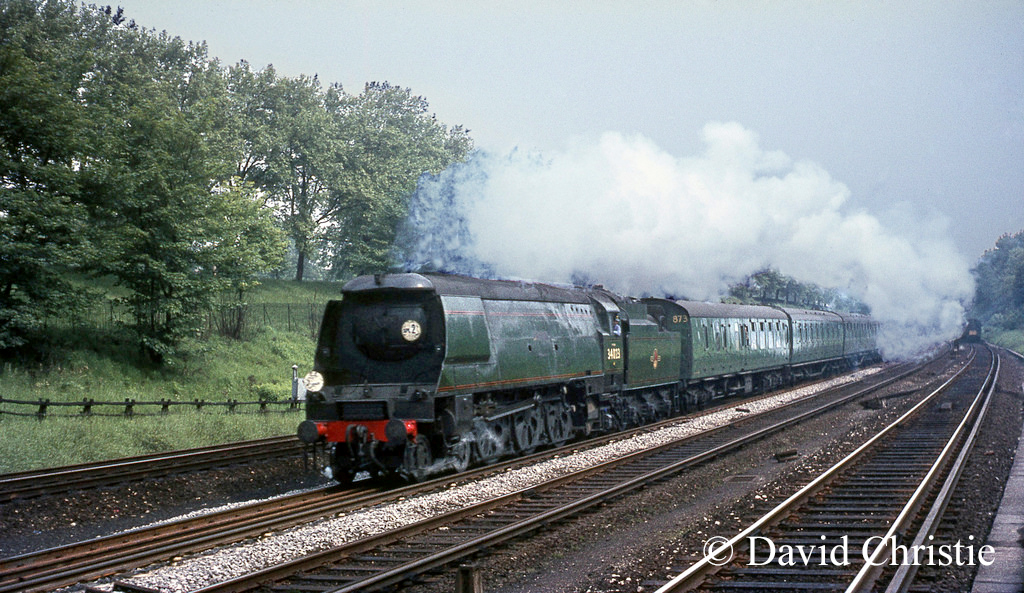

34023 Blackmore Vale in Clapham Cutting – June 1967
34023 Blackmoor Vale at Vauxhall hauling empty coaching stock to Waterloo – June 1967
34023 Blackmore Vale at the Longmoor Military Railway - June 1968.jpg

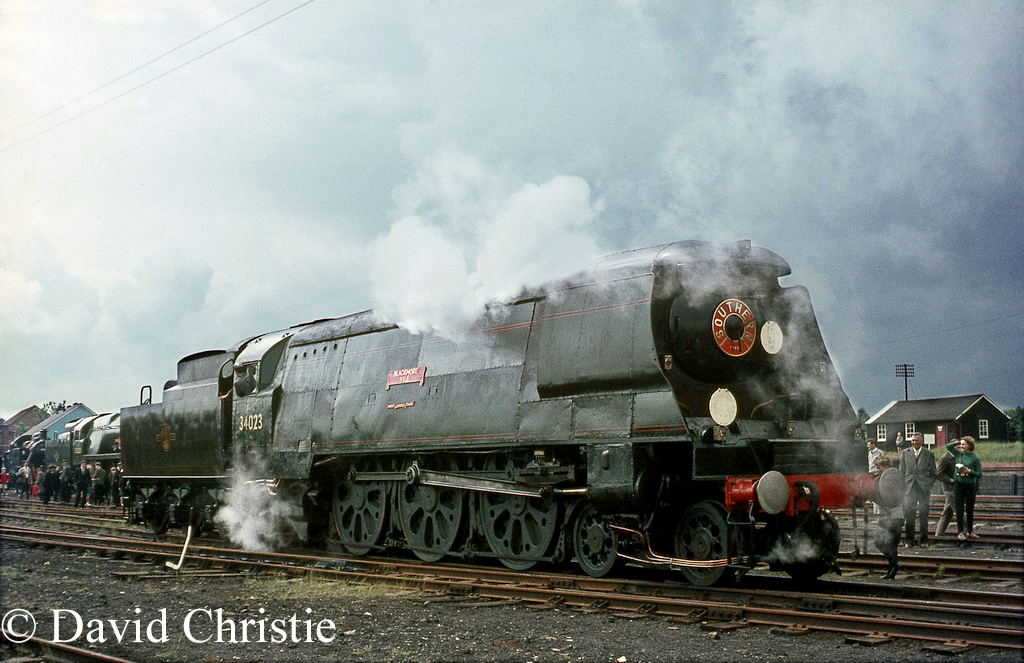

34023 Blackmore Vale at the Longmoor Military Railway – June 1968

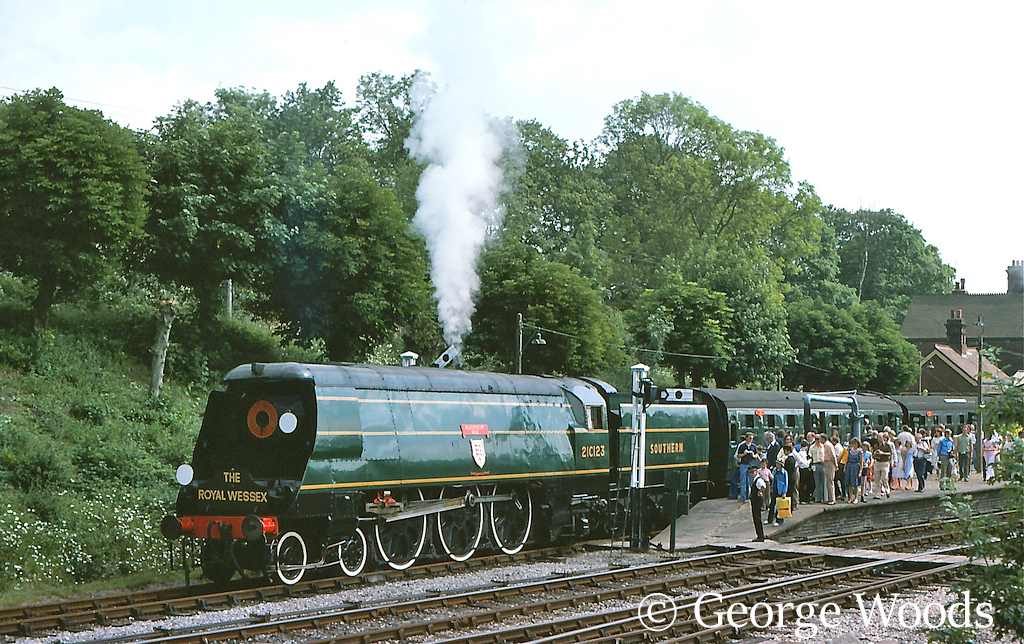

34023 Blackmoor Vale on the Bluebell Railway - 1960 or 70s.jpg
34023 Blackmoor Vale on the Bluebell Railway – 1960 or 70s

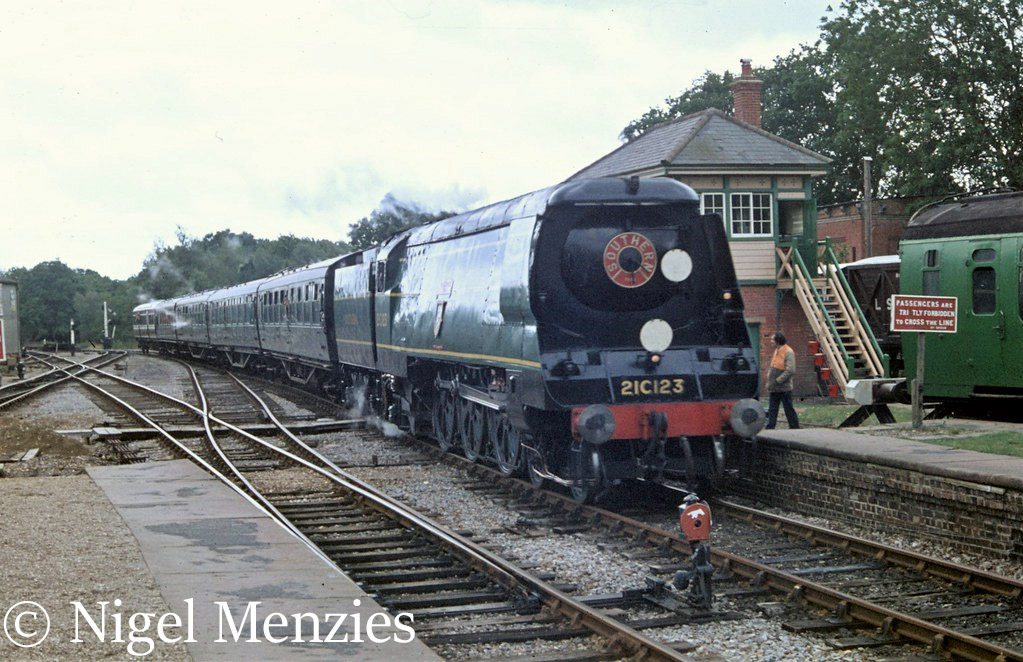

34023 Blackmoor Vale at Horsted Keynes on the Bluebell Railway – September 1983

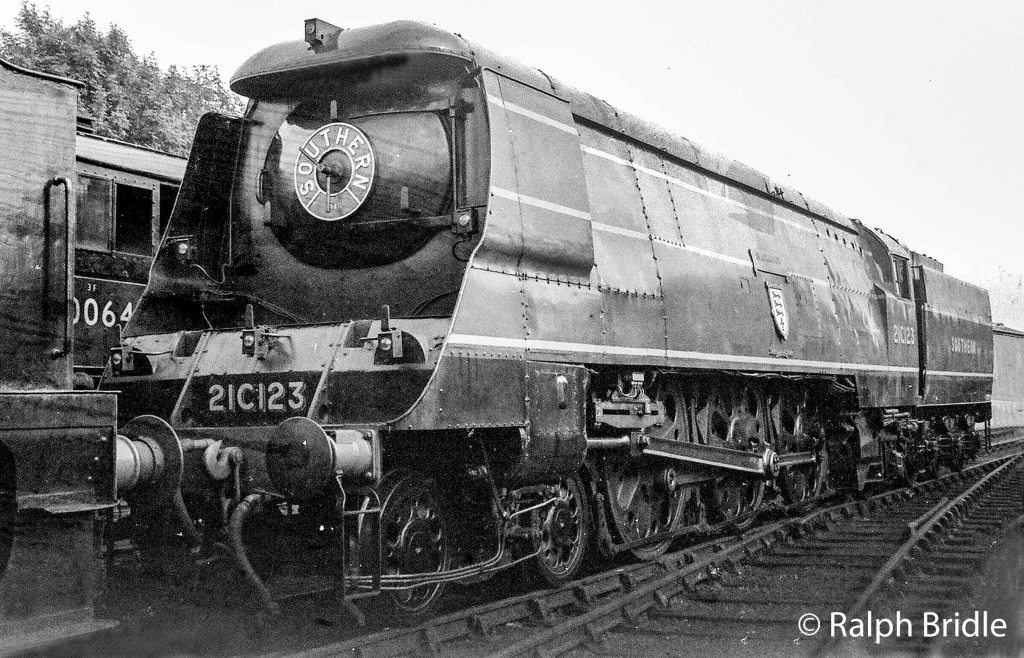

34023 Blackmoor Vale at Horsted Keynes – August 1989

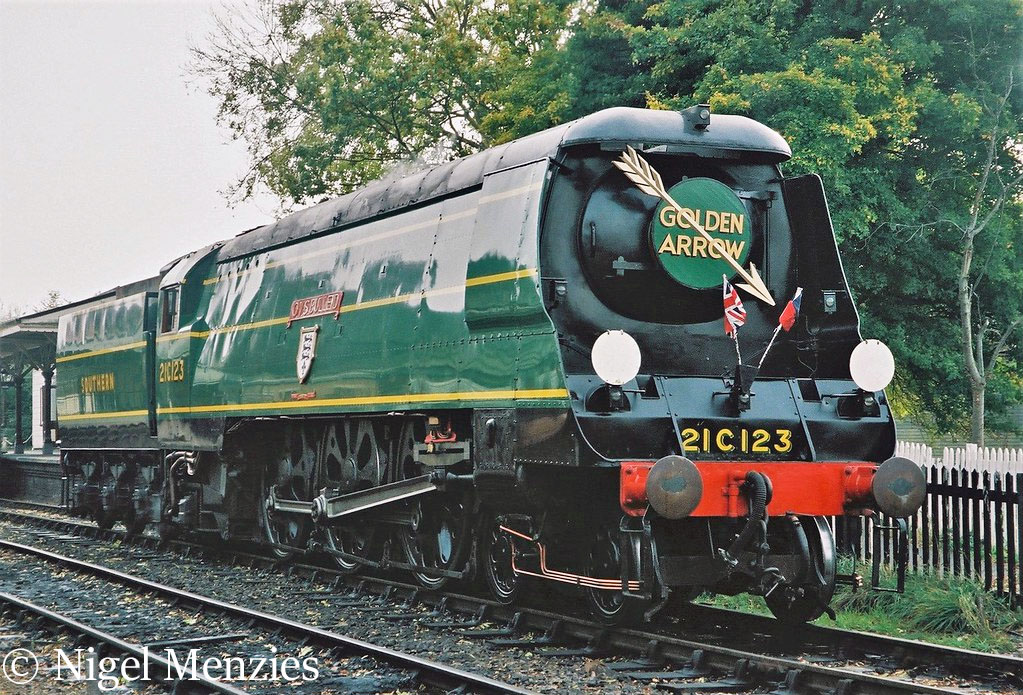

34023 Blackmoor Vale carrying the name OVS Bullied on the Bluebell Railway – October 2003

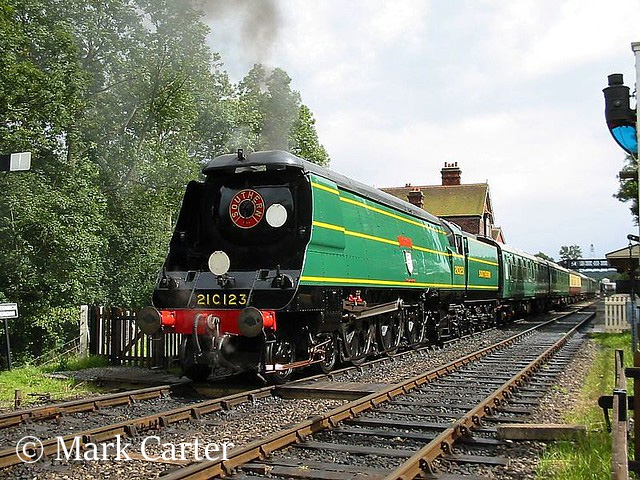

34023 Blackmoor Vale at Sheffield Park on the Bluebell Railway – June 2004

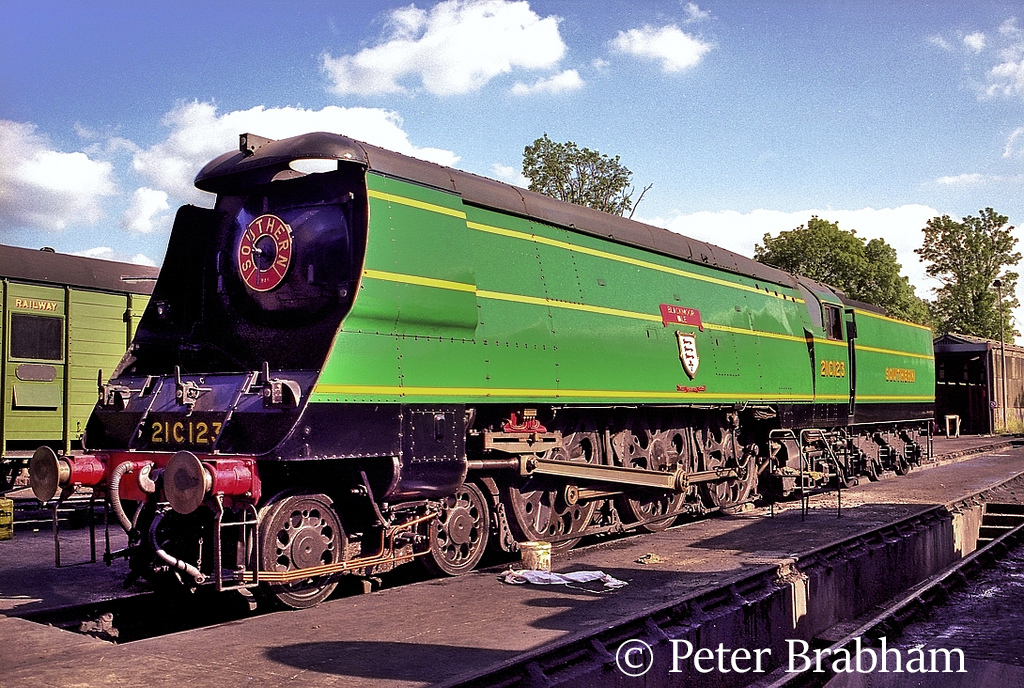

34023 Blackmoor Vale on the Bluebell Railway – August 2007

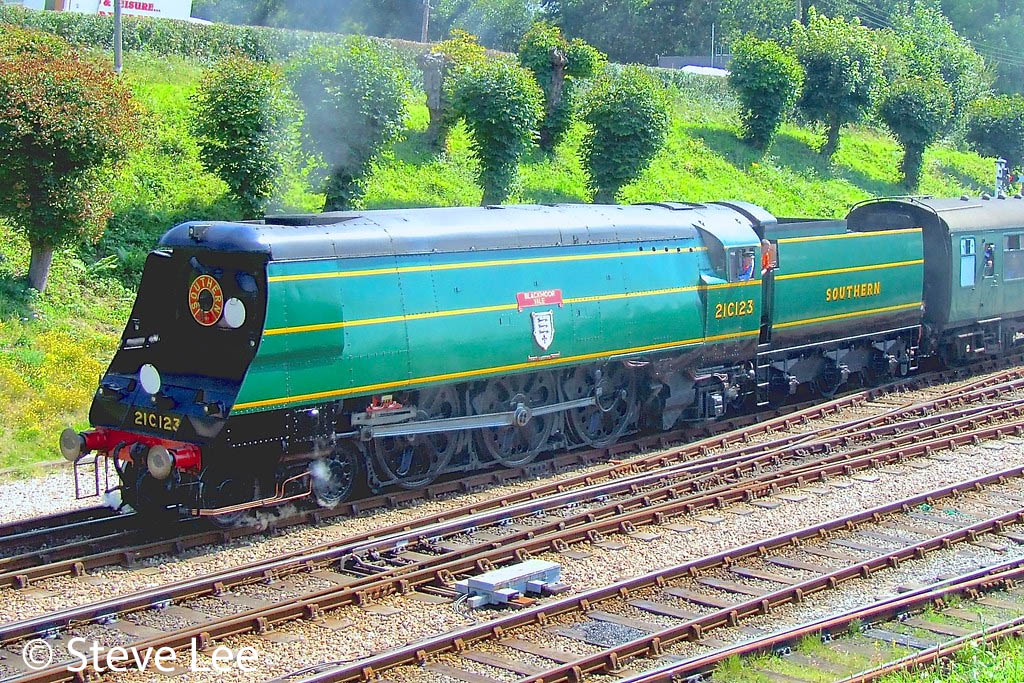

34023 Blackmoor Vale leaving Horsted Keynes on the Bluebell Railway – August 2007

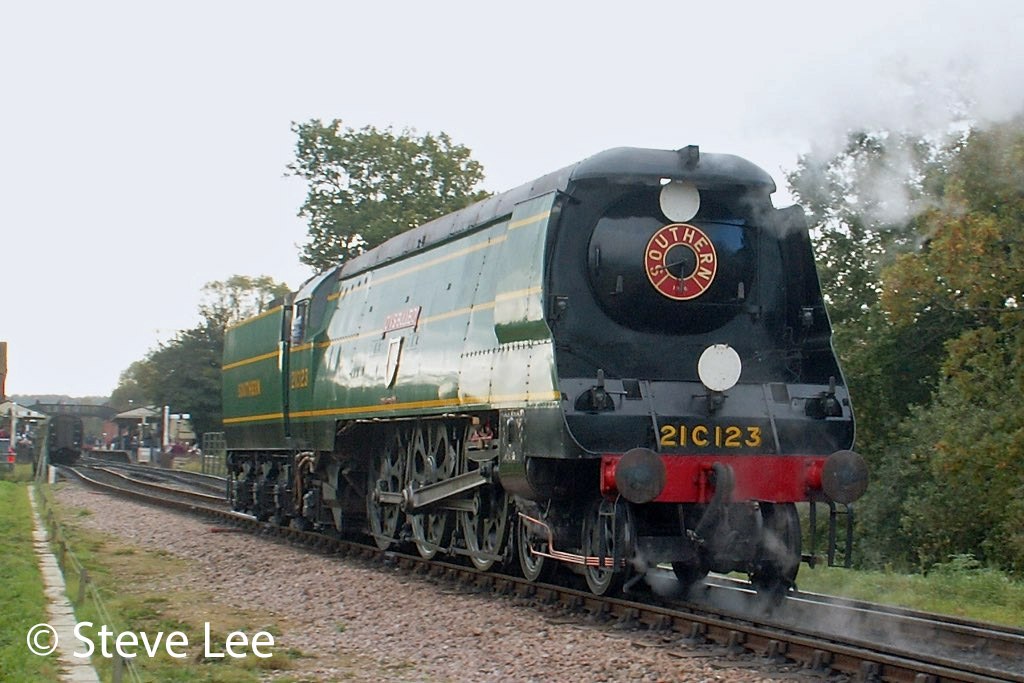

34023 Blackmoor Vale at Sheffield Park on the Bluebell Railway – October 2007

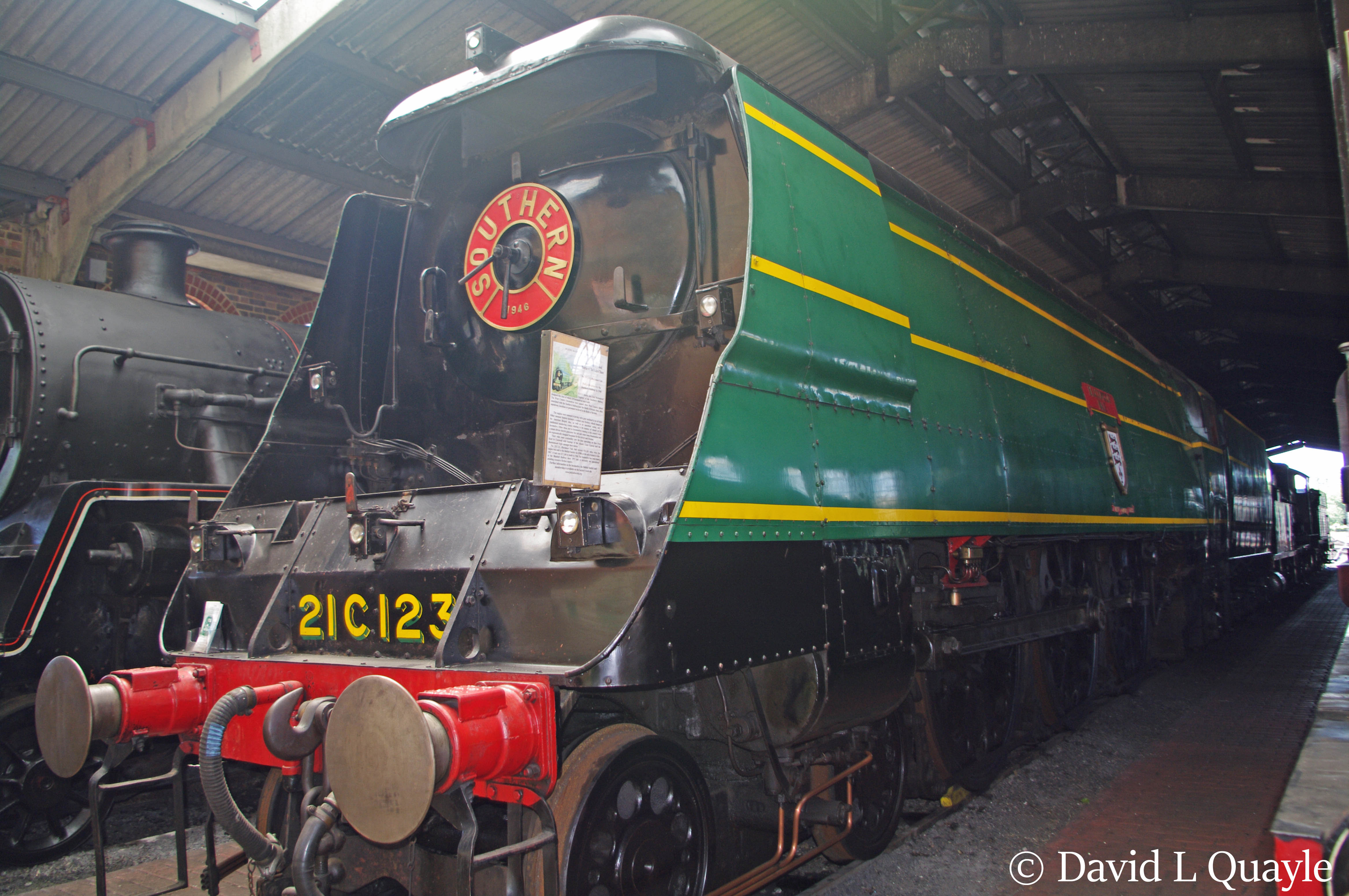

34023 Blackmoor Vale at Sheffield Park on the Bluebell Railway – June 2012
34023 Blackmoor Vale with 80064 on static display at Sheffield Park on the Bluebell Railway – June 2012
